Question
A particle executes simple harmonic motion with an amplitude of 10cm and time period 6s. At t = 0 it is at position x = 5cm going towards positive x-direction. Write the equation for the displacement x at time t. Find the magnitude of the acceleration of the particle at t = 4s.
✓

Answer

Given, $\text{r}=10\text{cm}.$ At $\text{t}=0,\ \text{x}=5\text{cm}$$\text{T}=6\sec.$
So, $\text{W}=\frac{2\pi}{\text{T}}=\frac{2\pi}{6}=\frac{\pi}{3}\sec^{-1}$ At, $\text{t}=0,\ \text{x}=5\text{cm}$ So, $\text{5}=10\sin(\text{w}\times0+\phi)=10\sin\phi$ $[\text{y}=\text{r}\sin\text{wt}]$$\sin\phi=\frac{1}{2}\Rightarrow\phi=\frac{\pi}{6}$
$\therefore$ Equation of displacement $\text{x}=(10\text{cm})\sin\Big(\frac{\pi}{3}\Big)$
At $\text{t}=4$ secound$\text{x}=10\sin\Big[\frac{\pi}{3}\times4+\frac{\pi}{6}\Big]=10\sin\Big[\frac{8\pi+\pi}{6}\Big]$
$=10\sin\Big(\frac{3\pi}{2}\Big)=10\sin\Big(\pi+\frac{\pi}{2}\Big)$
$=-10\sin\Big(\frac{\pi}{2}\Big)=-10$
Acceleration $\text{a}=-\text{w}^2\text{x}=-\Big(\frac{\pi^2}{9}\Big)\times(-10)$$=10.9\approx0.11\text{cm}/\sec$

Need a full question paper?

Generate a complete, print-ready paper with questions like this in minutes — across 16+ boards, with answer keys.

Start Generating Free

Explore more

More "5 Marks Questions" from Simple Harmonic Motion→Simple Harmonic Motion — all question types→Physics STD 11 Science question papers→Gujarat Board STD 11 Science question papers→Gujarat Board question paper generator→

Similar questions

A car moving along a straight highway with speed of $126km\ h^{–1}$ is brought to a stop within a distance of $200m$. What is the retardation of the car (assumed uniform), and how long does it take for the car to stop?
→
A tuning fork vibrating with a frequency of 512Hz is kept close to the open end of a tube filled with water The water level in the tube is gradually lowered. When the water level is 17cm below the open end, maximum intensity of sound is heard. If the room temperature is 20° C, calculate
  1. Speed of sound in air at room temperature
  2. Speed of sound in air at 0° C
  3. If the water in the tube is replaced with mercury, will there be any difference in your observations?
→
A boy riding on a bicycle going at 12km/h towards a vertical wall whistles at his dog on the ground. If the frequency of the whistle is 1600Hz and the speed of sound in air is 330m/s, find
  1. The frequency of the whistle as received by the wall.
  2. The frequency of the reflected whistle as received by the boy.
→
A spring compressed by 0.1m develops a restoring force 10N. A body of mass 4kg placed on it. Deduce
  1. The force constant of the spring.
  2. The depression of the spring under the weight of the body(take g = 10 N/ kg).
  3. The period of oscillation, the body is distributed and.
  4. Frequency of oscillation.
→
The descending pulley shown in figure has a radius $20cm$ and moment of inertia $0.20kg-m^2$. The fixed pulley is light and the horizontal plane frictionless. Find the acceleration of the block if its mass is $1.0kg$.
→
How many time constants will elapse before the energy stored in the capacitor reaches half of its equilibrium value in a charging RC circuit?
→

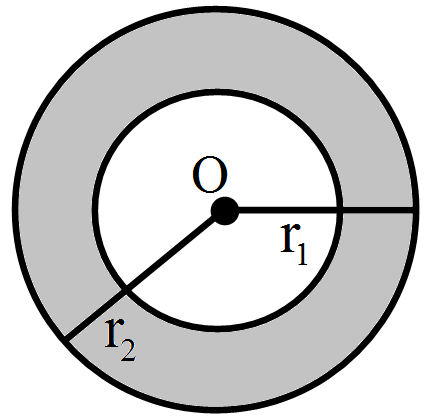

A charge Q is distributed uniformly within the material of a hollow sphere of inner and outer radii $r_1$ and $r_2$ (figure). Find the electric field at a point P a distance x away from the centre for $r_1 < x < r_2$ Draw a rough graph showing the electric field as a function of x for $O < x < 2r_2$ (figure).
→
