Question
A power transmission line feeds input power at $2300V$ to a stepdown transformer with its primary windings having $4000$ turns. What should be the number of turns in the secondary in order to get output power at $230 V?$
✓
Answer
Input voltage, $V_1 = 2300$
Number of turns in primary coil, $n_1 = 4000$
Output voltage, $V_2 = 230V$
Number of turns in secondary coil $= n_2$
Voltage is related to the number of turns as:
$\frac{\text{V}_1}{\text{V}_2}=\frac{\text{n}_1}{\text{n}_2}$
$\frac{2300}{230}=\frac{4000}{\text{n}_2}$
$\text{n}_2=\frac{4000\times230}{2300}=400$
Hence, there are $400$ turns in the second winding.
Number of turns in primary coil, $n_1 = 4000$
Output voltage, $V_2 = 230V$
Number of turns in secondary coil $= n_2$
Voltage is related to the number of turns as:
$\frac{\text{V}_1}{\text{V}_2}=\frac{\text{n}_1}{\text{n}_2}$
$\frac{2300}{230}=\frac{4000}{\text{n}_2}$
$\text{n}_2=\frac{4000\times230}{2300}=400$
Hence, there are $400$ turns in the second winding.
Need a full question paper?
Generate a complete, print-ready paper with questions like this in minutes — across 16+ boards, with answer keys.
Explore more
Similar questions
The three stable isotopes of neon: $^{20}_{10}\text{Ne},\ ^{21}_{10}\text{Ne }\text{ and }\ ^{22}_{10}\text{Ne}$ have respective abundances of 90.51%, 0.27% and 9.22%. The atomic masses of the three isotopes are 19.99 u, 20.99 u and 21.99 u, respectively. Obtain the average atomic mass of neon.
→A compound microscope forms an inverted image of an object. In which of the following cases it is kely to create difficulties?
- Looking at small germs.
- Looking at circular spots.
- Looking at a vertical tube containing some water.
A Galilean telescope is $27\ cm$ long when focused to form an image at infinity. If the objective has a focal length of $30\ cm,$ what is the focal length of the eyepiece?
→X-ray and visible light travel at the same speed in vacuum. Do they travel at the same speed in glass?
When we can consider a charged particle as point electric charge ?
Why longitudinal waves cannot be polarised ?
A single lens is mounted in a tube. A parallel beam enters the tube and emerges out of the tube as a divergent beam. Can you say with certainty that there is a diverging lens in the tube?
A nucleus $\frac{23}{10}$ Ne undergoes β− decay and becomes $\frac{23}{11}$.gif)
Na. Calculate the maximum kinetic energy of electrons emitted assuming that the daughter nucleus and anti-neutrino carry negligible kinetic energy.$\left\{\text{mass of} \frac{23}{10} Ne = 22.994466 u\right\}$
$\left\{\text{mass of}\frac{23}{11}Na=22.989770u\right\}$
$\left\{ 1u = 931.5\text{MeV}/ c^{2}\right\}$
→Na. Calculate the maximum kinetic energy of electrons emitted assuming that the daughter nucleus and anti-neutrino carry negligible kinetic energy.$\left\{\text{mass of} \frac{23}{10} Ne = 22.994466 u\right\}$$\left\{\text{mass of}\frac{23}{11}Na=22.989770u\right\}$
$\left\{ 1u = 931.5\text{MeV}/ c^{2}\right\}$

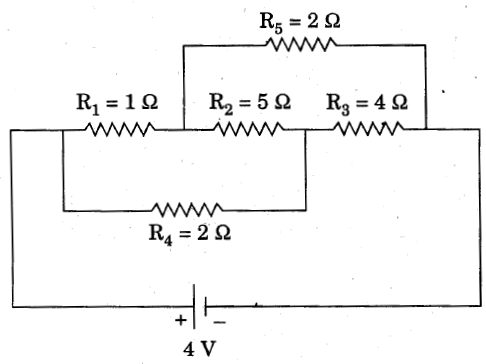

Calculate the current drawn from the battery in the given network.
