STD 11 - 14. waves and sound — JEE STD 11 Science — Question

Gujarat BoardEnglish MediumSTD 11 ScienceJEESTD 11 - 14. waves and sound4 Marks
MCQ
A string is fixed at both ends vibrates in a resonant mode with a separation $2.0 \,\,cm$ between the consecutive nodes. For the next higher resonant frequency, this separation is reduced to $1.6\,\, cm$. The length of the string is .... $cm$
  • A
    $4$
  • ✓
    $8$
  • C
    $12$
  • D
    $16$
✓

Answer

Correct option: B.
$8$
b
Let there be $n$ loops in the $1\, st$ case

$\rightarrow$ Length of the wire$L$ $=\left(\left(\mathrm{n} \lambda_{1}\right) / 2\right)$

$\left(\lambda_{1}=2 \times 2=4 \mathrm{cm}\right)$

$\rightarrow$ Length of the wire $L_{l}=\left\{(n+1) \frac{\lambda_{2}}{2}\right\}$

$\left(\lambda_{2}=2 \times(1.6)=3.2 \mathrm{cm}\right)$

$\rightarrow \frac{n \lambda_{1}}{2}=(n+1) \frac{\lambda_{2}}{2}$

$\rightarrow n \times 4=(n+1)(3.2)$

$\rightarrow 4 n-(3.2) n=3.2$

$\rightarrow 0.8 n=3.2$

$\rightarrow n=4$

Length of the string

$L=\frac{n \lambda_{1}}{2}=\frac{(4 \times 4)}{2}=8 \mathrm{cm}$

Need a full question paper?

Generate a complete, print-ready paper with questions like this in minutes — across 16+ boards, with answer keys.

Start Generating Free

Explore more

JEE STD 11 Science question papers→Gujarat Board STD 11 Science question papers→Gujarat Board question paper generator→

Similar questions

Soap helps in cleaning clothes, because
→
The relation between the linear magnification $m,$ the object distance $u$ and the focal length $f$ is
→
The angular momentum of an electron in a hydrogen atom is proportional to $: ($Where $r$ is the radius of orbit of electron$)$
→
In stationary wave
→

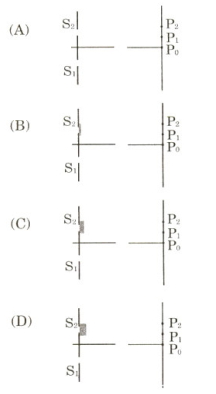

Column $I$ shows four situations of standard Young's double slit arrangement with the screen placed far away from the slits $S_1$ and $S_2$. In each of these cases $\mathrm{S}_1 \mathrm{P}_0=\mathrm{S}_2 \mathrm{P}_0, \mathrm{~S}_1 \mathrm{P}_1-\mathrm{S}_2 \mathrm{P}_1=\lambda / 4$ and $\mathrm{S}_1 \mathrm{P}_2-\mathrm{S}_2 \mathrm{P}_2=\lambda / 3$, where $\lambda$ is the wavelength of the light used. In the cases $\mathrm{B}, \mathrm{C}$ and $\mathrm{D}$, a transparent sheet of refractive index $\mu$ and thickness $t$ is pasted on slit $\mathrm{S}_2$. The thicknesses of the sheets are different in different cases. The phase difference between the light waves reaching a point $\mathrm{P}$ on the screen from the two slits is denoted by $\delta(\mathrm{P})$ and the intensity by $I(\mathrm{P})$. Match each situation given in Column $I$ with the statement$(s)$ in Column $II$ valid for that situation.
