Circular Motion — Physics STD 12 Science — Question

Gujarat BoardEnglish MediumSTD 12 SciencePhysicsCircular Motion5 Marks
Question
A table with smooth horizontal surface is fixed in a cabin that rotates with a uniform angular velocity $\omega$ in a circular path of radius R (In figure). A smooth groove AB of length L(<<R) is made on the surface of the table. The groove makes an angle $\theta$ with the radius OA of the circle in which the cabin rotates. A small particle is kept at the point A in the groove and is released to move along AB. Find the time taken by the particle to reach the point B.

✓

Answer


The cabin rotates with angular velocity $\omega$ & radius R

$\therefore$ The particle experiences a force $\text{mR}\omega^2$

The component of $\text{mR}\omega^2$ along the groove provides the required force to the particle to move along AB.

$\therefore$ $\text{mR}\omega^2\cos\theta=\text{ma}$

$\Rightarrow\text{a}=\text{R}\omega^2\cos\theta$

length of groove = L

$\text{L}=\text{ut}+\frac{1}{2}\text{at}^2$

$\Rightarrow\text{L}=\frac{1}{2}\text{R}\omega^2\cos\theta\text{ t}^2$

$\Rightarrow\text{t}^2=\frac{2\text{L}}{\text{R}\omega^2\cos\theta}$

$\Rightarrow\text{t}=\sqrt{\frac{2\text{L}}{\text{R}\omega^2\cos\theta}}$

Need a full question paper?

Generate a complete, print-ready paper with questions like this in minutes — across 16+ boards, with answer keys.

Start Generating Free

Explore more

More "5 Marks Questions" from Circular Motion→Circular Motion — all question types→Physics STD 12 Science question papers→Gujarat Board STD 12 Science question papers→Gujarat Board question paper generator→

Similar questions

A person says that he measured the acceleration of a particle to be non-zero while no force was acting on the particle:
  1. He is a liar.
  2. His clock might have run slow.
  3. His meter scale might have been longer than the standard.
  4. He might have used non-inertial frame.
→
An ideal gas is trapped between a mercury column and the closed-end of a narrow vertical tube of uniform base containing the column. The upper end of the tube is open to the atmosphere. The atmospheric pressure equals 76cm of mercury. The lengths of the mercury column and the trapped air column are 20cm and 43cm respectively. What will be the length of the air column when the tube is tilted slowly in a vertical plane through an angle of 60°? Assume the temperature to remain constant.
→
Figure shows a square loop ABCD with edgelength a. The resistance of the wire ABC is r and that of ADC is 2r. Find the magnetic field B at the centre of the loop assuming uniform wires.

→
A person with a normal near point (25 cm) using a compound microscope with objective of focal length 8.0 mm and an eyepiece of focal length 2.5 cm can bring an object placed at 9.0 mm from the objective in sharp focus. What is the separation between the two lenses? Calculate the magnifying power of the microscope.
→
Can $\text{L}_\alpha$ X-ray of one material have shorter wavelength than $\text{K}_\alpha$ X-ray of another?
→

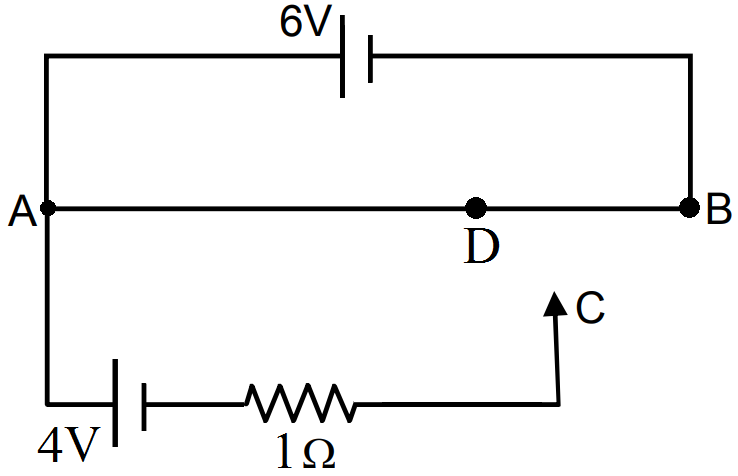

A 6 volt battery of negligible internal resistance is connected across a uniform wire AB of length 100cm. The positive terminal of another battery of emf 4V and internal resistance $1\Omega$ is joined to the point A, as shown in the figure. Take the potential at B to be zero. (a) What are the potentials at the points A and C? (b) At which point D of the wire AB, the potential is equal to the potential at C? (c) If the points C and D are connected by a wire, what will be the current through it? (d) If the 4V battery is replaced by a 7.5V battery, what would be the answers of parts (a) and (b)?

→
