Question

A table with smooth horizontal surface is fixed in a cabin that rotates with a uniform angular velocity $\omega$ in a circular path of radius R (In figure). A smooth groove AB of length L(<$\theta$ with the radius OA of the circle in which the cabin rotates. A small particle is kept at the point A in the groove and is released to move along AB. Find the time taken by the particle to reach the point B.

✓

Answer

The cabin rotates with angular velocity $\omega$ & radius R
$\therefore$ The particle experiences a force $\text{mR}\omega^2$
The component of $\text{mR}\omega^2$ along the groove provides the required force to the particle to move along AB.
$\therefore$ $\text{mR}\omega^2\cos\theta=\text{ma}$
$\Rightarrow\text{a}=\text{R}\omega^2\cos\theta$
length of groove = L
$\text{L}=\text{ut}+\frac{1}{2}\text{at}^2$
$\Rightarrow\text{L}=\frac{1}{2}\text{R}\omega^2\cos\theta\text{ t}^2$
$\Rightarrow\text{t}^2=\frac{2\text{L}}{\text{R}\omega^2\cos\theta}$
$\Rightarrow\text{t}=\sqrt{\frac{2\text{L}}{\text{R}\omega^2\cos\theta}}$

Need a full question paper?

Generate a complete, print-ready paper with questions like this in minutes — across 16+ boards, with answer keys.

Start Generating Free

Explore more

More "5 Marks Questions" from Circular Motion→Circular Motion — all question types→Physics STD 12 Science question papers→Gujarat Board STD 12 Science question papers→Gujarat Board question paper generator→

Similar questions

Draw a circuit diagram to study the input and output characteristics of an n-p-n transistor in its common emitter configuration. Draw the typical input and output characteristics.
Explain, with the help of a circuit diagram, the working of n-p-n transistor as a common emitter amplifier.

Consider the de Broglie wavelength of an electron and a proton. Which wavelength is smaller if the two particles have.

The same speed.
The same momentum.
The same energy?.

In an agricultural experiment, a solution containing 1 mole of a radioactive material $\Big(\text{t}_{\frac{1}{2}}=14.3\text{ days}\Big)$ was injected into the roots of a plant. The plant was allowed 70 hours to settle down and then activity was measured in its fruit. If the activity measured was $1\mu\text{Ci},$ what per cent of activity is transmitted from the root to the fruit in steady state?

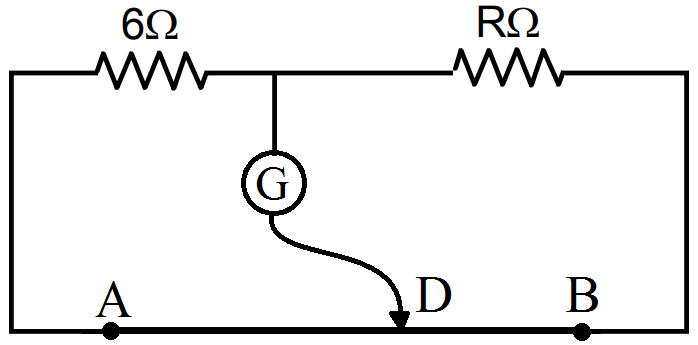

The potentiometer wire AB shown in figure. is 50cm long. When AD = 30cm, no deflection occurs in the galvanometer. Find R.
