Question

A ‘thermacole’ icebox is a cheap and an efficient method for storing small quantities of cooked food in summer in particular. A cubical icebox of side 30cm has a thickness of 5.0cm. If 4.0kg of ice is put in the box, estimate the amount of ice remaining after 6h. The outside temperature is 45°C, and co-efficient of thermal conductivity of thermacole is 0.01 J s^–1 m^–1 K^–1. [Heat of fusion of water = 335 × 103J kg^–1].

✓

Answer

Side of the given cubical ice box, s = 30cm = 0.3m
Thickness of the ice box, l = 5.0cm = 0.05m
Mass of ice kept in the ice box, m = 4kg
Time gap, t = 6h = 6 × 60 × 60s
Outside temperature, T = 45°C
Coefficient of thermal conductivity of thermacole, K = 0.01 J s^–1m^–1K^–1
Heat of fusion of water, L = 335 × 10³J kg^–1
Let m^’ be the total amount of ice that melts in 6h.
The amount of heat lost by the food:
$\theta=\text{KA}(\text{T}-0)\frac{\text{t}}{1}$
Where,
A = Surface area of the box = 6s² = 6 × (0.3)² = 0.54m³
$\theta=0.01\times0.54\times45\times6\times60\times\frac{60}{0.05}=104976\text{J}$
But $\theta=\text{m}'\text{L}$
$\therefore\text{m}'=\frac{\theta}{\text{L}}$
$=\frac{104976}{(335\times10^3)}=0.313\text{kg}$
Mass of ice left = 4 – 0.313 = 3.687kg
Hence, the amount of ice remaining after 6 h is 3.687kg.

Need a full question paper?

Generate a complete, print-ready paper with questions like this in minutes — across 16+ boards, with answer keys.

Start Generating Free

Explore more

More "5 Marks Questions" from Thermal Properties of Matter→Thermal Properties of Matter — all question types→Physics STD 11 Science question papers→Rajasthan Board STD 11 Science question papers→Rajasthan Board question paper generator→

Similar questions

A train runs along an unbanked circular track of radius 30m at a speed of 54km/h. The mass of the train is 10⁶kg. What provides the centripetal force required for this purpose - The engine or the rails ? What is the angle of banking required to prevent wearing out of the rail?

The left end of a copper rod (length = 20cm area of cross section = 0.20cm) is maintained at 20^°C and the right end is maintained at 80^°C. Neglecting any loss of heat through radiation, find,

The temperature at a point 11cm from the left end
The heat current through the rod. Thermal conductivity of copper $=385\text{Wm}^{-1}{^{\circ}}\text{C}^{-1}.$

Oxygen is filled in a closed metal jar of volume 1.0 × 10^-3m³ at a pressure of 1.5 × 10⁵Pa and temperature 400K. The jar has a small leak in it. The atmospheric pressure is 1.0 × 10⁵Pa and the atmospheric temperature is 300K Find the mass of the gas that leaks out by the time the pressure and the temperature inside the jar equalise with the surrounding.

A projectile shot at an angle of 60° above the horizontal ground strikes a vertical wall 30m away at a point 15m above the ground. Find the speed with which the projectile was launched and the speed with which it strikes the wall.

A cycle followed by an engine (made of one mole of an ideal gas in a cylinder with a piston) is shown in Fig. Find heat exchanged by the engine, with the surroundings for each section of the cycle. (C_v = (3/2) R)

AB : constant volume

BC : constant pressur

DA : constant pressure

In en experiment on photoelectric effect, light of wavelength 400 run is incident on a cesium plate at the rate of 5.0W. The potential of the collector plate is made sufficiently positive with respect to the emitter so that the current reaches its saturation value. Assuming that on the average one out of every 10° photons is able to eject a photoelectron, find the photocurrent in the circuit.

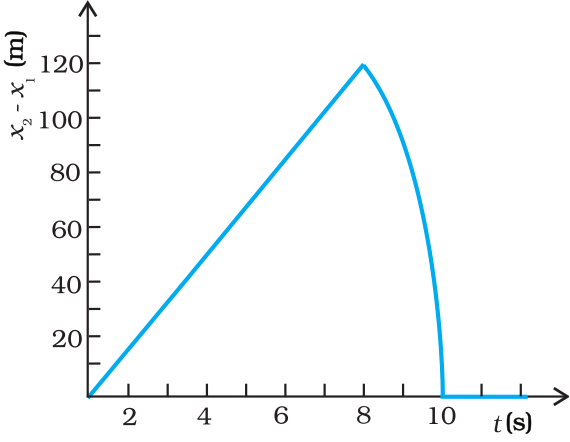

Two stones are thrown up simultaneously from the edge of a cliff 200m high with initial speeds of 15m s^–1 and 30m s^–1. Verify that the graph shown in correctly represents the time variation of the relative position of the second stone with respect to the first. Neglect air resistance and assume that the stones do not rebound after hitting the ground. Take g = 10m s^–2. Give the equations for the linear and curved parts of the plot.
