Motion in a Plane — Physics STD 11 Science — Question

Rajasthan BoardEnglish MediumSTD 11 SciencePhysicsMotion in a Plane5 Marks
Question
Establish the following vector inequalities geometrically or otherwise:
$|\text{a}+\text{b}|\le|\text{a}|+|\text{b}|$
When does the equality sign above apply?
✓

Answer

Let two vectors $\vec{\text{a}}$ and $\vec{\text{b}}$ be represented by the adjacent sides of a parallelogram OMNP, as shown in the figure.

$|\vec{\text{OM}}|=|\vec{\text{a}}|\ ...(\text{i})$
$|\vec{\text{MN}}|=|\vec{\text{OP}}|=|\vec{\text{b}}|\ ...(\text{ii})$
$|\vec{\text{ON}}|=|\vec{\text{a}}+\vec{\text{b}}|\ ...(\text{iii})$
In a triangle, each side is smaller than the sum of the other two sides.
Therefore, in $\triangle\text{OMN},$ we have:
$\text{ON}<(\text{OM}+\text{MN})$
$|\vec{\text{a}}+\vec{\text{b}}|<|\vec{\text{a}}|+|\vec{\text{b}}|\ ...(\text{iv})$
If the two vectors $\vec{\text{a}}$ and $\vec{\text{b}}$ act along a straight line in the same direction, then we can write:
$|\vec{\text{a}}+\vec{\text{b}}|=|\vec{\text{a}}|+|\vec{\text{b}}|\ ...(\text{v})$
Combining equations (iv) and (v), we get:
$|\vec{\text{a}}+\vec{\text{b}}|\le|\vec{\text{a}}|+|\vec{\text{b}}|$

Need a full question paper?

Generate a complete, print-ready paper with questions like this in minutes — across 16+ boards, with answer keys.

Start Generating Free

Explore more

More "5 Marks Questions" from Motion in a Plane→Motion in a Plane — all question types→Physics STD 11 Science question papers→Rajasthan Board STD 11 Science question papers→Rajasthan Board question paper generator→

Similar questions

Demonstrate free forced and resonant oscillations.
→
  1. What are beats? Name the basic phenomenon due to which beats are produced.
  2. Two sources of sound are producing waves of frequency n1 and n2, where (n1 - n2) is small, show mathematically that the beat frequency is (n1 - n2).
→
A bucket full of water is placed in a room at 15°C with initial relative humidity 40%. The volume of the room is 50m3.
  1. How much water will evaporate?
  2. lf the room temperature is increased by 5°C, how much more water will evaporate? The saturation vapour pressure of water at 15°C and 20°C are 1.6kPa and 2.4kPa respectively.
→
During a total solar eclipse the moon almost entirely covers the sphere of the sun. Write the relation between the distances and sizes of the sun and moon.
→
A ball is whirled in a circle by attaching it to a fixed point with a string. Is there an angular rotation of the ball about its centre? If yes, is this angular velocity equal to the angular velocity of the ball about the fixed point?
→

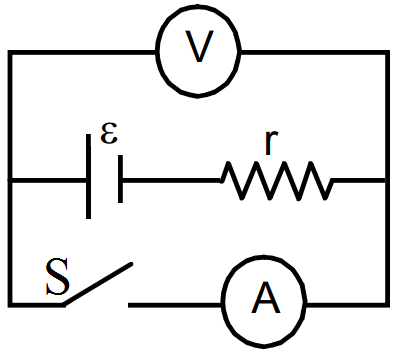

Figure. shows an arrangement to measure the emf $\in$ and internal resistance r of a battery. The voltmeter has a very high resistance and the ammeter also has some resistance. The voltmeter reads 1.52V when the switch S is open. When the switch is closed, the voltmeter reading drops to 1.45V and the ammeter reads 1.0A. Find the emf and the internal resistance of the battery.

→
