A thin metallic partition of negligible thickness is inserted between two shaded metallic plates as shown. The remaining ends are then packed with insulating plates to form a container like structure.$2$ taps shown are opened at $t = 0$ and finally closed at $t = 5s$. Find capacitance of system between $A$ and $B$ after closing taps. (Assume liquid to be non conducting) Volumetric flow rates and dieletric constants of liquid are given.
Advanced
Download our app for free and get started

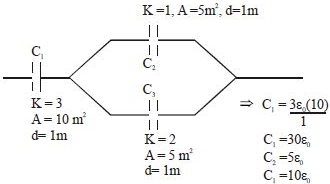

Finally system behaves as shown
(net ${ = \frac{{\left( {15{\varepsilon _0}} \right)\left( {30{\varepsilon _0}} \right)}}{{45{\varepsilon _0}}} = 10{\varepsilon _0} = 8.85 \times {{10}^{ - 11}}F}$)
