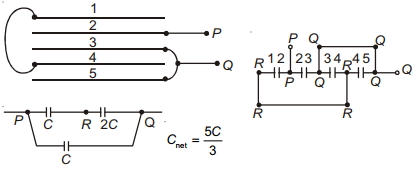

The following arrangement consists of five identical metal plates parallel to each other. Area of each plate is $A$ and separation between the successive plates is $d$. The capacitance between $P$ and $Q$ is
