Question
A travelling harmonic wave on a string is described by
$\text{y}(\text{x, t})=7.5\sin\Big(0.0050\text{x}+12\text{t}+\frac{\pi}{4}\Big)$
What are the displacement and velocity of oscillation of a point at x = 1cm, and t = 1s? Is this velocity equal to the velocity of wave propagation?
✓

Answer

The given harmonic wave is:
$\text{y}(\text{x, t})=7.5\sin\Big(0.0050\text{x}+12\text{t}+\frac{\pi}{4}\Big)$
For x = 1cm and t = 1s,
$\text{y}=(1,1)=7.5\sin\Big[0.0050+12+\frac{\pi}{4}\Big]$
$=7.5\sin\Big[12.0050+\frac{\pi}{4}\Big]$
$=7.5\sin\theta$
Where, $\theta=12.0050+\frac{\pi}{4}=12.0050+\frac{3.14}{4}=12.79\text{ rad}$
$=\frac{180}{3.14\times12.79}=732.81^\circ$
$\therefore\ \text{y}=(1,1)=7.5\sin[732.81^\circ]$
$=7.5\sin(90\times8+12.81^\circ)$
$=7.5\sin(12.81^\circ)$
$=7.5\times0.2217$
$=1.6629\approx1.663\text {cm}$
The velocity of the oscillation at a given point and time is given as:
$\text{v}=\frac{\text{d}}{\text{dt}}\text{y}(\text{x, t})=\frac{\text{d}}{\text{dt}}\Big[7.5\sin\big(0.0050\text{x}+12\text{t}+\frac{\pi}{4}\big)\Big]$
$=7.5\times12\cos\Big(0.0050\text{x}+12\text{t}+\frac{\pi}{4}\Big)$
At x = 1cm and t = 1s:
$\text{v}=\text{y}(1, 1)=90\cos\Big(12.005+\frac{\pi}{4}\Big)$
$=90\cos(732.81^\circ)=90\cos(90\times8+12.81^\circ)$
$=90\cos(12.81^\circ)$
$=90\times0.975=87.75\text{cm/s}$
Now, the equation of a propagating wave is given by:
$\text{y}(\text{x, t})=\text{a}\sin(\text{kx}+\text{wt}+\phi)$
Where,
$\text{k}=\frac{2\pi}{\lambda}$
$\therefore\ \lambda=\frac{2\pi}{\text{k}}$
And $\omega=2\pi\text{ v}$
$\therefore\ \text{v}=\frac{\omega}{2\pi}$
Speed $=\text{v}=\text{v}\lambda=\frac{\omega}{\text{k}}$
Where
$\omega=12\text{ rad/s}$
$\text{k}=0.0050\text{m} ^{-1}$
$\therefore\ \text{v}=\frac{12}{0.0050}=2400\text{cm/s}$
$\therefore$ Hence, the velocity of the wave oscillation at x = 1cm and t = 1s is not equal to the velocity of the wave propagation.

Need a full question paper?

Generate a complete, print-ready paper with questions like this in minutes — across 16+ boards, with answer keys.

Start Generating Free

Explore more

More "5 Marks Questions" from Waves→Waves — all question types→Physics STD 11 Science question papers→Gujarat Board STD 11 Science question papers→Gujarat Board question paper generator→

Similar questions

What is Carnot engine? What are its main parts? Draw pictures and describe them.
→
Define simple harmonic motion. Derive the differential equation of its motion and find the solution.
→
A parallel-plate capacitor has plate area $100cm^2$ and plate separation 1.0cm. A glass plate (dielectric constant 6.0) of thickness 6.0mm and an ebonite plate (dielectric constant 4.0) are inserted one over the other to fill the space between the plates of the capacitor. Find the new capacitance.
→
In an experiment on photoelectric effect, the emitter and the collector plates are placed et a separation of 10cm and are connected through en ammeter without any cell A magnetic field B exists parallel to the plates. The work function of the emitter is 2.39eV and the light incident on it has wavelengths between 400nm and 600nm. Find the minimum value of B for which the current registered by the ammeter is zero. Neglect any effect of space charge.
→
A hemispherical bowl of radius $R$ is rotated about its axis of symmetry which is kept vertical. A small block is kept in the bowl at a position where the radius makes an angle $\theta$ with the vertical. The block rotates with the bowl without any slipping. The friction coefficient between the block and the bowl surface is $\mu.$ Find the range of the angular speed for which the block will not slip.
→
A particle A having a charge of $2.0 \times 10^{-6}C$ is held fixed on a horizontal table. A second charged particle of mass $80g$ stays in equilibrium on the table at a distance of $10cm$ from the first charge. The coefficient of friction between the table and this second particle is $\mu=0.2.$ Find the range within which the charge of this second particle may lie.
→

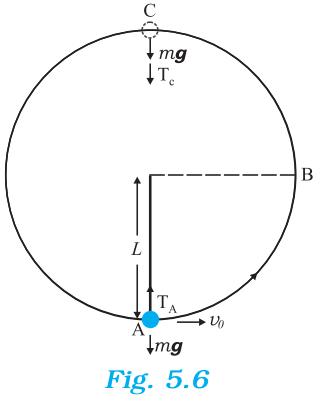

A bob of mass $m$ is suspended by a light string of length $L$. It is imparted a horizontal velocity $v_o$ at the lowest point $A$ such that it completes a semi$-$circular trajectory in the vertical plane with the string becoming slack only on reaching the topmost point, $C.$ This is shown in Fig. $5.6.$ Obtain an expression for $(i) v_o; (ii)$ the speeds at points $B$ and $C; (iii)$ the ratio of the kinetic energies $\left(K_B / K_C\right)$ at $B$ and $C.$ Comment on the nature of the trajectory of the bob after it reaches the point $C$.
→
