Wave Motion and Waves on a String — Physics STD 12 Science — Question

Rajasthan BoardEnglish MediumSTD 12 SciencePhysicsWave Motion and Waves on a String5 Marks
Question
A travelling wave is produced on a long horizontal string by vibrating an end up and down sinusoidally. The amplitude of vibration is 1.0cm and the displacement becomes zero 200 times per second. The linear mass density of the string is 0.10kg/m and it is kept under a tension of 90N.
  1. Find the speed and the wavelength of the wave.
  2. Assume that the wave moves in the positive x-direction and at t = 0, the end x = 0 is at its positive extreme position. Write the wave equation.
  3. Find the velocity and acceleration of the particle at x - 50cm at time t = 10ms.
✓

Answer

Amplitude, $\text{A}=1\text{cm},$ Tension $\text{T}=90\text{N}$ Frequency, $\text{f}=\frac{200}{2}=100\text{Hz}$ Mass per unit length, $\text{m}=0.1\text{kg/mt}$
  1. $\Rightarrow\text{v}=\sqrt{\frac{\text{T}}{\text{m}}}=30\text{m/s}$
$\lambda=\frac{\text{v}}{\text{f}}=\frac{30}{100}=0.3\text{m}=30\text{cm}$
  1. The wave equation $\text{y}=(1\text{cm})\cos2\pi\Big(\frac{\text{t}}{0.01\text{s}}\Big)-\Big(\frac{\text{x}}{30}\text{cm}\Big)$
[because at x = 0, displacement is maximum]
  1. $\text{y}=1\cos2\pi\Big(\frac{\text{x}}{30}-\frac{\text{t}}{0.01}\Big)$
$\Rightarrow\text{v}=\frac{\text{dy}}{\text{dt}}=\Big(\frac{1}{0.01}\Big)\sin2\pi\Big\{\big(\frac{\text{x}}{30}\big)-\big(\frac{\text{t}}{0.01}\big)\Big\}$
$\text{a}=\frac{\text{dv}}{\text{dt}}=-\Big\{\frac{4\pi^2}{(0.01)^2}\Big\}\cos2\pi\Big\{\big(\frac{\text{x}}{30}\big)-\big(\frac{\text{t}}{0.01}\big)\Big\}$
When, $\text{x}=50\text{cm},\ \text{t}=10\text{ms}=10\times10^{-3}\text{s}$
$\text{x}=\Big(\frac{2\pi}{0.01}\Big)\sin2\pi\Big\{\big(\frac{5}{3}\big)-\big(\frac{0.01}{0.01}\big)\Big\}$
$=\Big(\frac{\text{p}}{0.01}\Big)\sin\bigg(\frac{2\pi}{\frac{2}{3}}\bigg)=\Big(\frac{1}{0.01}\Big)\sin\Big(\frac{4\pi}{3}\Big)\\=-200\pi\sin\Big(\frac{\pi}{3}\Big)=-200\pi\text{x}\Big(\frac{\sqrt{3}}{2}\Big)$
$=544\text{cm/s}=5.4\text{m/s}$
Similarly
$\text{a}=\Big\{\frac{4\pi^2}{(0.01)^2}\Big\}\cos2\pi\Big\{\big(\frac{5}{3}\big)-1\Big\}$
$=4\pi^2\times10^4\times\frac{1}{2}$
$\Rightarrow2\times10^5\text{cm/s}^2$
$\Rightarrow2\text{km/s}^2$

Need a full question paper?

Generate a complete, print-ready paper with questions like this in minutes — across 16+ boards, with answer keys.

Start Generating Free

Explore more

More "5 Marks Questions" from Wave Motion and Waves on a String→Wave Motion and Waves on a String — all question types→Physics STD 12 Science question papers→Rajasthan Board STD 12 Science question papers→Rajasthan Board question paper generator→

Similar questions

A rod of length $L$ has a total charge $Q$ distributed uniformly along its length. It is bent in the shape of a semicircle. Find the magnitude of the electric field at the centre of curvature of the semicircle.
→
A particle is found to be at rest when seen from a frame $S_1$ and moving with constant velocity when seen from another frame $S_2$. Mark out the possible options:
→

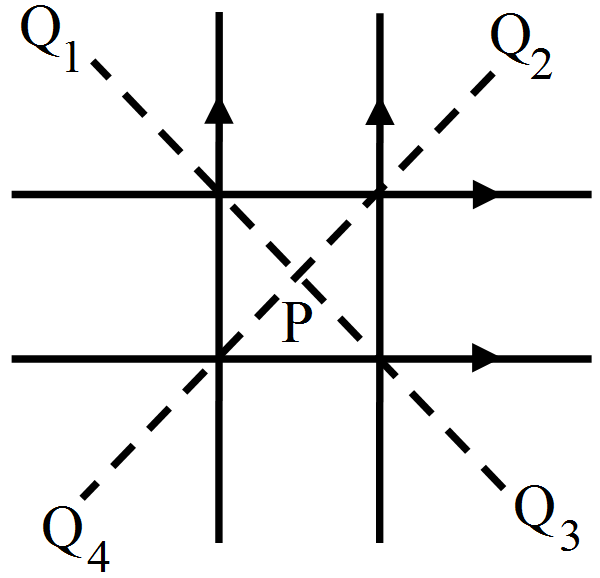

Four long, straight wires, each carrying a current of $5.0A,$ are placed in a plane as shown in figure. The points of intersection form a square of side $5.0\ cm.$
  1. Find the magnetic field at the centre $P$ of the square.
  2. $Q_1, Q_2, Q_3,$ and $Q_4$ are points situated on the diagonals of the liquare and at a distance from $P$ that is equal to the length of the diagonal of the square. Find the magnetic fields at these points.
→
Light is incident from glass $(\mu=1.50)$ to water $(\mu=1.33).$ Find the range of the angle of deviation for which there are two angles of incidence.
→
Consider a closed loop $C$ in a magnetic field $(Fig)$. The flux passing through the loop is defined by choosing a surface whose edge coincides with the loop and using the formula $\phi=\text{B}_1.\text{dA}_1+\text{B}_2.\text{dA}_2+ .....$. Now if we chose two different surfaces $S_1$ and $S_2$ having $C$ as their edge, would we get the same answer for flux. Jusity your answer.
→
A capacitor having a capacitance of $100\mu\text{F}$ is charged to a potential difference of $50V.$
  1. What is the magnitude of the charge on each plate?
  2. The charging battery is disconnected and a dielectric of dielectric constant $2.5$ is inserted. Calculate the new potential difference between the plates.
  3. What charge would have produced this potential difference in absence of the dielectric slab.
  4. Find the charge induced at a surface of the dielectric slab.
→

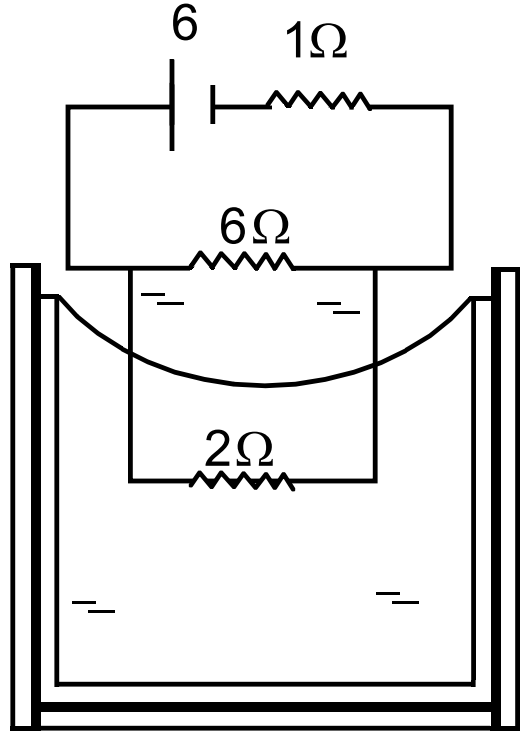

The $2.0\Omega$ resistor shown in the figure is dipped into a calorimeter containing water. The heat capacity of the calorimeter together with water is $2000JK^{-1}$.
