MCQ
A uniform string oflength $20\ m$ is suspended from a rigid support. A short wave pulse is introduced at its lowest end. It starts moving up the string. The time taken to reach the supports is (take $g= 10 $ $ms^{-2}$ )
  • $2$$\sqrt 2 s$
  • B
    $\sqrt 2 s$
  • C
    $\;2\pi \sqrt 2 s$
  • D
    $2s$

Answer

Correct option: A.
$2$$\sqrt 2 s$
a
We know that velocity in string is given by

$\mathrm{v}=\sqrt{\frac{\mathrm{T}}{\mu}}$              $...(I)$

where $\mu=\frac{\mathrm{m}}{1}=\frac{\text { mass of string }}{\text { length of string }}$

The tension $\mathrm{T}=\frac{\mathrm{m}}{\ell} \times \mathrm{x} \times \mathrm{g}$                   $...(II)$

From $(a)$ and $(b)$

$\frac{d x}{d t}=\sqrt{g x}$

$\mathrm{x}^{-1 / 2} \mathrm{dx}=\sqrt{\mathrm{g}} \mathrm{dt} \quad \therefore \int_{0}^{\ell} \mathrm{x}^{-1 / 2} \mathrm{dx}-\sqrt{\mathrm{g}} \int_{0}^{\ell} \mathrm{dt}$

$2 \sqrt{l}=\sqrt{g} \times t \quad \therefore t=2 \sqrt{\frac{\ell}{g}}=2 \sqrt{\frac{20}{10}}=2 \sqrt{2}$

Need a full question paper?

Generate a complete, print-ready paper with questions like this in minutes — across 16+ boards, with answer keys.

Start Generating Free

Similar questions

A ball of mass $150\,g$ starts moving with an acceleration of $20m/{s^2}$. When hit by a force, which acts on it for $0.1\, sec$. The impulsive force is ........ $N-s$
The frequencies of two sound sources are $256 Hz$ and $260 Hz$. At $t = 0,$ the intensity of sound is maximum. Then the phase difference at the time $t = \frac{1}{16}\, sec$ will be
Water enters through end A with a speed v1 and leaves through end B with a speed v2 of a cylindrical tube AB. The tube is always completely filled with water. In case I the tube is horizontal, in case II it is vertical with the end A upward and in case III it is vertical with the end B upward. We have v1 = v2 for
  1. Case I.
  2. Case II.
  3. Case III.
  4. Each case.
If the velocity of a particle is given by $v = {(180 - 16x)^{1/2}} m/s$, then its acceleration will be.......$ms^{-2}$
Among the four graph shown in the figure there is only one graph for which average velocity over the time interval $(0, T)$ can vanish for a suitably chosen $T$. Which one is it?
A uniform rope of mass $6\,kg$ hangs vertically from a rigid support. A block of mass $2\,kg$ is attached to the free end of the rope. A transverse pulse of wavelength $0.06\,m$ is produced at the lower end of the rope. The wavelength of the pulse when it reaches the top is (in $m$ )

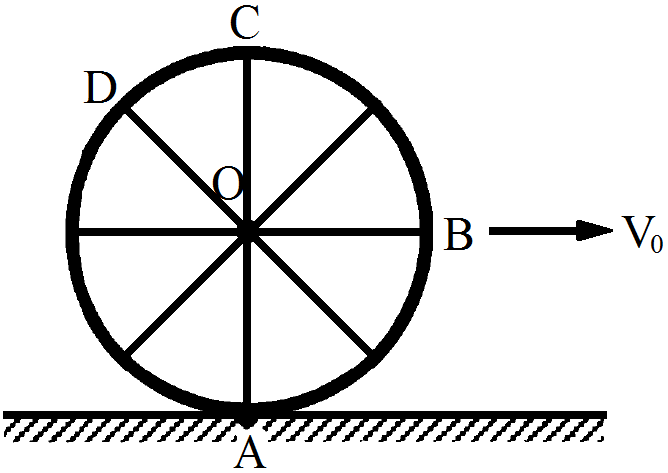

Consider a wheel of a bicycle rolling on a level road at a linear speed v0:
