Question
A wheel starting from rest is uniformly accelerated at $4 ~rad/-s^2$ for 10 seconds.It is allowed to rotate uniformly for the next 10 seconds and is finally brought to rest in the next 10 seconds. Find the total angle rotated by the wheel.
✓
Answer
Area under the curve will decide the total angle rotated$\therefore$ Maximum angular velocity = 4 × 10 = 40 rad/-s
Therefore, area under the curve $=\frac{1}2{}\times10\times40+40\times10+\frac{1}{2}\times40\times10$$=800\text{rad}$
$\therefore$ Total angle rotated = 800rad.
Therefore, area under the curve $=\frac{1}2{}\times10\times40+40\times10+\frac{1}{2}\times40\times10$$=800\text{rad}$
$\therefore$ Total angle rotated = 800rad.
Need a full question paper?
Generate a complete, print-ready paper with questions like this in minutes — across 16+ boards, with answer keys.
Explore more
Similar questions
Given a + b + c + d = 0, which of the following statements are correct: The magnitude of (a + c) equals the magnitude of ( b + d).
Precise measurements of physical quantities are a need of science. For example, to ascertain the speed of an aircraft, one must have an accurate method to find its positions at closely separated instants of time. This was the actual motivation behind the discovery of radar in World War II. Think of different examples in modern science where precise measurements of length, time, mass etc. are needed. Also, wherever you can, give a quantitative idea of the precision needed.

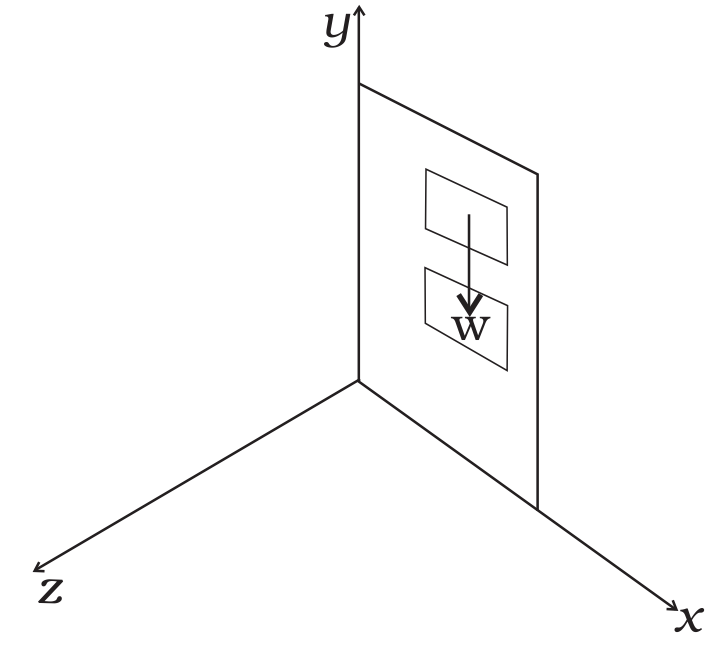

A door is hinged at one end and is free to rotate about a vertical axis. Does its weight cause any torque about this axis? Give reason for your answer.
