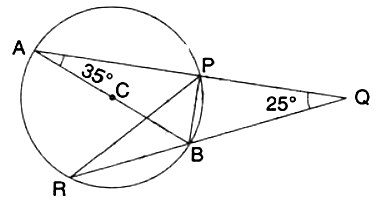

AB is a diameter of the circle APBR as shown in the figure. APQ and RBQ are straight lines. Find: ∠ BPR
Exercise 17 (A) | Q 29.3 | Page 260
Download our app for free and get started
ABP = 90°- ∠BAP = 90° - 35° = 55°
∴ ∠ABR = ∠PBR = ∠ABP = 115° - 55° = 60°
∴ ∠APR = ABR = 60°
(Angles subtended by the same chord on the circle are equal)
∴ ∠BPR = 90° - ∠APR = 90° - 60° = 30°
Download our appand get started for free
Experience the future of education. Simply download our apps or reach out to us for more information. Let's shape the future of learning together!No signup needed.*
Similar Questions
- 1View SolutionIn the following figure, AD is the diameter of the circle with centre O. chords AB, BC and CD are equal. If ∠DEF = 110°, Calculate: ∠AEF
- 2View SolutionIn the given figure, ∠BAD = 65°, ∠ABD = 70° and ∠BDC = 45°. Find: ∠ ACB.
Hence, show that AC is a diameter.
- 3In the given figure, AC is the diameter of circle, centre $\mathrm{O} . \mathrm{CD}$ and BE are parallel. Angle $\mathrm{AOB}=80^{\circ}$ and angle $\mathrm{ACE}=$ $10^{\circ}$. Calculate : Angle BCDView Solution
- 4View SolutionIn the figure, ∠DBC = 58°. BD is a diameter of the circle. Calculate : ∠BDC
- 5View SolutionIn the given figure, PQ is a diameter. Chord SR is parallel to PQ. Given that ∠PQR = 58°,
Calculate:
(i) ∠RPQ, (ii) ∠STP

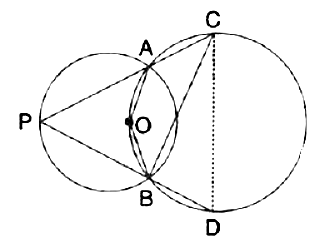

- 6View SolutionIn the given figure, the centre O of the small circle lies on the circumference of the bigger circle. If ∠APB = 75° and ∠BCD = 40°, find : ∠ADB
