MCQ
An air filled parallel plate capacitor has capacity $C$. If distance between plates is doubled and it is immersed in a liquid then capacity becomes twice. Dielectric constant of the liquid is
- A$1$
- B$2$
- C$3$
- ✓$4$
✓
Answer
Correct option: D.
$4$
d
(d) $C = \frac{{{\varepsilon _0}A}}{d}$ ......$(i)$
$C' = \frac{{{\varepsilon _0}KA}}{{2d}}$ ......$(ii)$
From equation $(i)$ and $(ii)$ $\frac{{C'}}{C} = \frac{K}{2}$ $==>$ $2 = \frac{K}{2}\,\, \Rightarrow K = 4$
(d) $C = \frac{{{\varepsilon _0}A}}{d}$ ......$(i)$
$C' = \frac{{{\varepsilon _0}KA}}{{2d}}$ ......$(ii)$
From equation $(i)$ and $(ii)$ $\frac{{C'}}{C} = \frac{K}{2}$ $==>$ $2 = \frac{K}{2}\,\, \Rightarrow K = 4$
Need a full question paper?
Generate a complete, print-ready paper with questions like this in minutes — across 16+ boards, with answer keys.
Explore more
Similar questions
Antimony and bismuth are usually used in a thermocouple, because
The equivalent resistance and potential difference between A and B for the circuit is respectively
A battery of e.m.f. 3 volt and internal resistance 1.0 ohm is connected in series with copper voltameter. The current flowing in the circuit is 1.5 amperes. The resistance of voltameter will be
The resistance of a wire of iron is $10\, ohms$ and temp. coefficient of resistivity is $5 \times {10^{ - 3}}\,^oC$. At $20\,^oC$ it carries $30$ milliamperes of current. Keeping constant potential difference between its ends, the temperature of the wire is raised to $120\,^oC$. The current in milliamperes that flows in the wire is

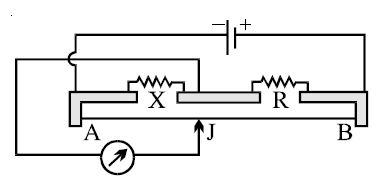

→The figure shows a meter-bridge circuit, with $AB = 100\, cm$,$ X = 12\,\Omega$ and $R = 18\,\Omega$ , and the jockey $J$ in the position of balance. If $R$ is now made $8\,\Omega$ , through what distance will $J$ have to be moved to obtain balance? .............. $cm$
