Question
An $ \alpha $-particle and a proton are accelerated through the same potential difference. Find the ratio of their de-Broglie wavelength.
✓
Answer
$ \lambda=\frac{h}{p}\Rightarrow\lambda=\frac{h}{\sqrt{2mE}} $ or $ \lambda=\frac{h}{\sqrt{2mqV}} $
$\therefore \quad \frac{\lambda_\alpha}{\lambda_p}=\frac{h / \sqrt{2 m_\alpha \cdot q_\alpha V }}{h / \sqrt{2 m_p q_p \cdot V}}=\sqrt{\left(\frac{m_p}{m_\alpha}\right)\left(\frac{q_p}{q_\alpha}\right)}$
$ =\sqrt{(\frac{m_{p}}{4m_{p}})(\frac{q_{p}}{2q_{p}})}=\sqrt{(\frac{1}{8})} $
$\Rightarrow \quad \lambda_\alpha: \lambda_p=1: \sqrt{8}$ or $\lambda_\alpha: \lambda_p=1: 2 \sqrt{2}$
$\therefore \quad \frac{\lambda_\alpha}{\lambda_p}=\frac{h / \sqrt{2 m_\alpha \cdot q_\alpha V }}{h / \sqrt{2 m_p q_p \cdot V}}=\sqrt{\left(\frac{m_p}{m_\alpha}\right)\left(\frac{q_p}{q_\alpha}\right)}$
$ =\sqrt{(\frac{m_{p}}{4m_{p}})(\frac{q_{p}}{2q_{p}})}=\sqrt{(\frac{1}{8})} $
$\Rightarrow \quad \lambda_\alpha: \lambda_p=1: \sqrt{8}$ or $\lambda_\alpha: \lambda_p=1: 2 \sqrt{2}$
Need a full question paper?
Generate a complete, print-ready paper with questions like this in minutes — across 16+ boards, with answer keys.
Explore more
Similar questions
Write the statements of Kirchhoff's laws.

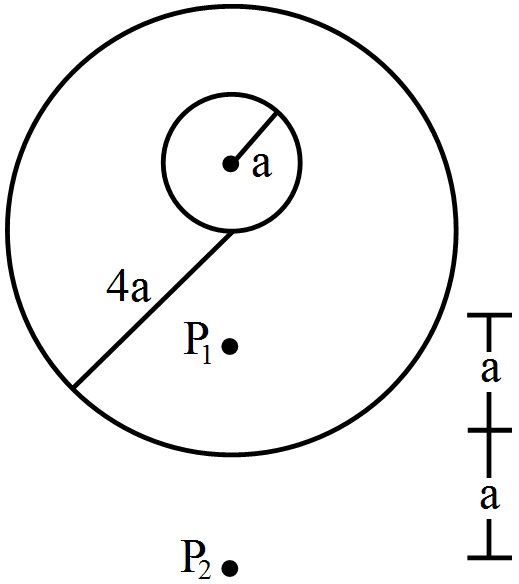

A uniform metal sphere of radius a and mass $M$ is surrounded by a thin uniform spherical shell of equal mass and radius $4a$ The centre of the shell falls on the surface of the inner sphere. Find the gravitational field at the points $P_1$ and $P_2$ shown in the figure.
→Answer the following question:
Ray optics is based on the assumption that light travels in a straight line. Diffraction effects (observed when light propagates through small apertures/slits or around small obstacles) disprove this assumption. Yet the ray optics assumption is so commonly used in understanding location and several other properties of images in optical instruments. What is the justification?
Ray optics is based on the assumption that light travels in a straight line. Diffraction effects (observed when light propagates through small apertures/slits or around small obstacles) disprove this assumption. Yet the ray optics assumption is so commonly used in understanding location and several other properties of images in optical instruments. What is the justification?
A high jumper successfully clears the bar. Is it possible that his centre of mass crossed the bar from below it? Try it with appropriate figures.
When $40\ kV$ is applied across an $X-$ray tube, $X-$ray is obtained with a maximum frequency of $9.7 \times 10^{18}Hz.$ Calculate the value of Planck constant from these data.
→Write the name of optical instruments.
Explain the behaviour of electric dipole in non-uniform electric field.
What is the longest wavelength of photon that can ionize a hydrogen atom in its ground state? Specify the type of radiation.
A and B are two conducting spheres of equal radius, in which sphere $A$ is solid and sphere $B$ is hollow. Both are charged to the same potential. What will be the relation between the charges on both the spheres?

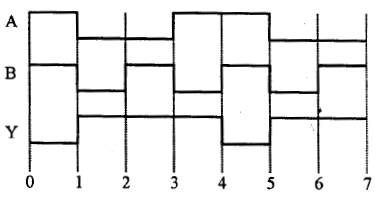

→The following figure shows the input waveforms (A, ,B) and the output waveform (Y) of a gate. Identify the gate, write its truth table and draw its logic symbol.
