At what distance from a concave mirror of focal length 10cm should an object 2cm long be placed in order to get an erect image 6cm tall?
Download our app for free and get started
$f=-10 cm, h_1=2 cm, h_2=6 cm$ (erect image) u = ? We know that:$\text{m}=\frac{\text{h}_2}{\text{h}_1}=\frac{6}{2}=3$
and
$\text{m}=-\frac{\text{v}}{\text{u}}=3$
$\Rightarrow3\text{u}=-\text{v}$
$\Rightarrow\text{v}=-3\text{u}\ ....\text{(A)}$
We have,$\frac{1}{\text{v}}+\frac{1}{\text{u}}=\frac{1}{\text{f}}$
$\frac{1}{(-3\text{u})}+\frac{1}{\text{u}}=\frac{1}{10}$
$\Rightarrow\frac{1}{\text{u}}-\frac{1}{\text{3u}}=-\frac{1}{10}$
$\Rightarrow\frac{2}{\text{3u}}=-\frac{1}{10}$
$\Rightarrow\text{u}=-\frac{20}{3}= 6.66\text{cm}$
The object should be palced at a distance of 6.66cm on the left side of the mirror.
and
$\text{m}=-\frac{\text{v}}{\text{u}}=3$
$\Rightarrow3\text{u}=-\text{v}$
$\Rightarrow\text{v}=-3\text{u}\ ....\text{(A)}$
We have,$\frac{1}{\text{v}}+\frac{1}{\text{u}}=\frac{1}{\text{f}}$
$\frac{1}{(-3\text{u})}+\frac{1}{\text{u}}=\frac{1}{10}$
$\Rightarrow\frac{1}{\text{u}}-\frac{1}{\text{3u}}=-\frac{1}{10}$
$\Rightarrow\frac{2}{\text{3u}}=-\frac{1}{10}$
$\Rightarrow\text{u}=-\frac{20}{3}= 6.66\text{cm}$
The object should be palced at a distance of 6.66cm on the left side of the mirror.
Download our appand get started for free
Experience the future of education. Simply download our apps or reach out to us for more information. Let's shape the future of learning together!No signup needed.*
Similar Questions
- 1View Solution

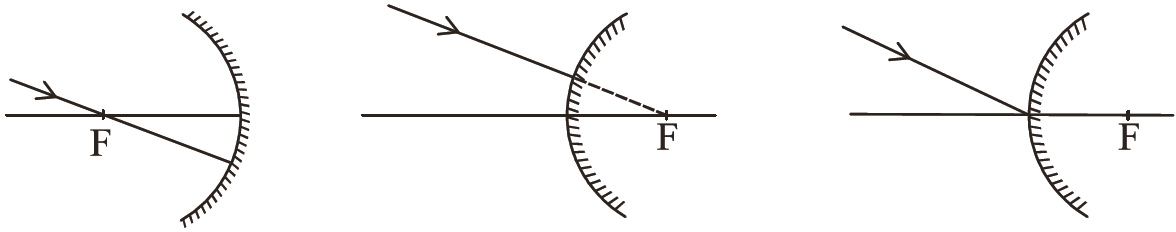

Draw the following diagram, in which a ray of light is incident on a concave/convex mirror, on your answer sheet. Show the path of this ray, after reflection, in each case.
