MCQ
Calculate the equivalent resistance between $A$ and $B$
- ✓$\frac{9}{2}\,\Omega $
- B$3 \,\Omega$
- C$6 \, \Omega$
- D$\frac{5}{3}\,\Omega $
✓
Answer
Correct option: A.
$\frac{9}{2}\,\Omega $
a

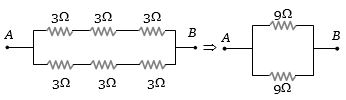

No current flow through vertical resistances ${R_{AB}} = \frac{9}{2}\,\Omega $.
No current flow through vertical resistances ${R_{AB}} = \frac{9}{2}\,\Omega $.
