Question

Classify the following atoms as diamagnetic or paramagnetic.
$H, O, Zn, Fe, F, Ar, He$
(Hint : Write down their electronic configurations)
Is it true that all substances with even number of electrons are diamagnetic?

✓

Answer

Atoms	Electronic configuration	No. of Electrons	Diamagnetic/Paramagnetic
$H$	$1s^1„$	$1$	Diamagnetic
$0$	$1s^22s^22p^4$	$8$	Paramagnetic
$Zn$	$1s^22s^22p^63s^23p^63d^{10}4s^2$	$30$	Diamagnetic
$Fe$	$1s^22s^22p^63s^23p^64s^23d^6$	$26$	Neither diamagnetic nor paramagnetic (ferromagnetic)
$F$	$1s^22s^22p^5$	$9$	Paramagnetic
$Ar$	$1s^22s^22p^63s^23p^6$	$18$	Diamagnetic
$He$	$Is^2$	$2$	Diamagnetic

It can be seen that all substances with an even number of electrons are not necessarily diamagnetic.

Need a full question paper?

Generate a complete, print-ready paper with questions like this in minutes — across 16+ boards, with answer keys.

Start Generating Free

Explore more

More "Answer the following in Detail" from Magnetic Materials→Magnetic Materials — all question types→Physics STD 12 Science question papers→Maharashtra Board STD 12 Science question papers→Maharashtra Board question paper generator→

Similar questions

An isosceles prism of refracting angle $179^{\circ}$ and refractive index 1.6 is used as a biprism by' keeping it $10 cm$ away from a slit, the edge of the biprism being parallel to the slit. The slit is illuminated by a light of wavelength $600 nm$ and the screen is $90 cm$ away from the biprism. Calculate the location of the centre of the 10 th dark band from the centre of the interference pattern and the path difference at this location.

State the factors which the magnetic force on a charge depends upon. Hence state the expression for the Lorentz force on a charge due to an electric field as well as a magnetic field.
Hence discuss the magnetic force on a charged particle which is
(i) moving parallel to the magnetic field
(ii) stationary.

Describe how a potentiometer is used to compare the emfs of two cells by combination method.

Distinguish between an ammeter and a voltmeter. $($Two points each $).$
The displacement of a particle performing simple harmonic
motion is $\frac{1}{3}rd$ of its amplitude. What fraction of total energy will be its kinetic energy?

When $100 V$ dc is applied across a coil, a current of $1 A$ flows through it. When $100 V \ ac$ of frequency $50 Hz$ is applied to the same coil, only $0.5 A$ current flows through it. Calculate the resistance, impedance and self $-$ inductance of the coil.

Find the capacity of a capacitor which when put in series with a $10 \Omega$ resistor makes the power factor equal to $0.5.$ Assume an $80\ V-100\ Hz\ AC$ supply.

What is an adiabatic process ? Obtain expressions for the work done by a system (an ideal gas) in an adiabatic process. Also draw the corresponding P-V diagram.

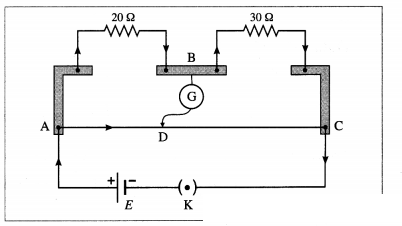

Two resistances, $20 \Omega$ and $30 \Omega$, are connected across the two gaps of a metre bridge as shown in the following figure.

The bridge wire has diameter $0.5\ mm$ and resistance $2 \Omega$. The emf of the cell is $2 V$. Assume that the internal resistance of the cell is zero. Calculate $(I)$ the resistivity $($specific resistance$)$ of the material of the bridge wire $(ii)$ the current provided by the cell when the bridge is balanced.

What are forced vibrations and resonance? Show that only odd harmonics are present in an air column vibrating in a pipe closed at one end.

State the expression for the acceleration of a circularly symmetric rigid body rolling without slipping down an inclined plane. Hence, deduce the acceleration of
(i) a ring
(ii) a solid cylinder
(iii) a hollow cylinder
(iv) a solid sphere, rolling without slipping down an inclined plane.
