Question
Construct a triangle $PQR$ with sides $QR = 7\ cm, PQ = 6\ cm$ and $ \angle\text{PQR} = 60^\circ.$ Then construct another triangle whose sides are $\frac{3}{5}$ of the corresponiding sides of $\triangle\text{PQR}.$
✓
Answer
Steps of Construction:
Step I: Draw a line segment $QR = 7\ cm.$
Step II: At Q, draw $\angle\text{PQR}=60^\circ.$
Step III: With Q as centre and radius $6\ cm$, draw an arc cutting the ray QX at P.
Step IV: Join PR. Thus, $\triangle\text{PQR}$ is the required triangle.
Step V: Below QR, draw an acute angle $\angle\text{YQR}.$
Step VI: Along QY, mark five points $R_1, R_2, R_3, R_4$ and $R_5$ such that $QR_1 = R_1R_2 = R_2R_3 = R_3R_4 = R_4R_5.$
Step VII: Join $RR_5$.
Step VIII: From $R_3$, draw $R_3R' || RR_5$ meeting QR at R'.
Step IX: From $R'$, draw $P'R' || PR$ meeting $PQ$ in $P'$.
Here, $\triangle\text{P}'\text{QR}'$ is the required triangle whose sides are $\frac{3}{5}$ of the corresponding sides of $\triangle\text{PQR}.$
Step I: Draw a line segment $QR = 7\ cm.$
Step II: At Q, draw $\angle\text{PQR}=60^\circ.$
Step III: With Q as centre and radius $6\ cm$, draw an arc cutting the ray QX at P.
Step IV: Join PR. Thus, $\triangle\text{PQR}$ is the required triangle.
Step V: Below QR, draw an acute angle $\angle\text{YQR}.$
Step VI: Along QY, mark five points $R_1, R_2, R_3, R_4$ and $R_5$ such that $QR_1 = R_1R_2 = R_2R_3 = R_3R_4 = R_4R_5.$
Step VII: Join $RR_5$.
Step VIII: From $R_3$, draw $R_3R' || RR_5$ meeting QR at R'.
Step IX: From $R'$, draw $P'R' || PR$ meeting $PQ$ in $P'$.
Here, $\triangle\text{P}'\text{QR}'$ is the required triangle whose sides are $\frac{3}{5}$ of the corresponding sides of $\triangle\text{PQR}.$
Need a full question paper?
Generate a complete, print-ready paper with questions like this in minutes — across 16+ boards, with answer keys.
Explore more
Similar questions
Find the coordinates of the point on x-axis which is equidistance from the points (-2, 5) and (2, -3).
If the point $A(0, 2)$ is equidistant from the points $B(3, p)$ and $C(p, 5)$, find P.
→Divide a line segment of length 14cm internally in the ratio 2 : 5. Also justify your construction.
Prove that the sum of the squares of the diagonals of a parallelogram is equal to the sum of the squares of its sides.
The following table shows causes of noise pollution. Show it by a pie diagram.
| Construction | Traffic | Aricraft take offs | Industry | Trains |
| 10% | 50% | 9% | 20% | 11% |

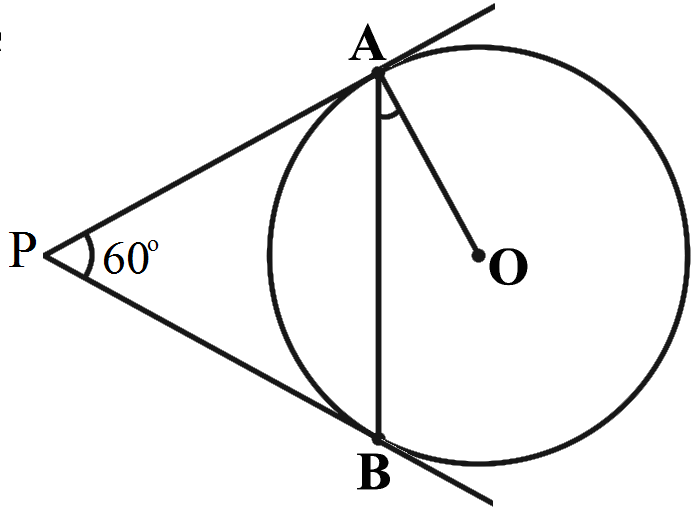

In the given figure, PA and PB are two tangents to the circle with centre O. If $\angle\text{APB}=60^\circ$ then find the measure of $\angle\text{OAB}.$
→Prove the following identities:
$\frac{\cot^2\theta(\sec\theta-1)}{(1+\sin\theta)}+\frac{\sec^2\theta(\sin\theta-1)}{(1+\sec\theta)}=0$
→$\frac{\cot^2\theta(\sec\theta-1)}{(1+\sin\theta)}+\frac{\sec^2\theta(\sin\theta-1)}{(1+\sec\theta)}=0$
The following table shows the daily supply of electricity to different places in a town. Show the information by a pie diagram.
| Places | Factories | Houses | Roads | Shops | Offices | Others |
Supply of electricity | 24 | 14 | 7 | 5 | 6 | 4 |
The diameter and thickness of a hollow metals sphere are 12 cm and 0.01 m respectively. The density of the metal is 8.88 gm per cm3. Find the outer surface area and mass of the sphere.
Find the length of each side of a rhombus whose diagonals are $24\ cm$ and $10\ cm$ long.
→
