Question
Construct a $\triangle\text{ABC}$ in which BC = 3.4cm, AB - AC = 1.5cm and $\angle\text{B}=45^\circ.$
✓
Answer
Steps of Construction:
- Construct a line segment BC of 3.4cm.
- At the point B, draw $\angle\text{XBC}=45^\circ$
- Keeping B as centre and radius 1.5cm draw an arc which intersects XB at D.
- Join DC.
- Draw the perpendicular bisector of DC which intersects DB at A.
- Join AC.
Need a full question paper?
Generate a complete, print-ready paper with questions like this in minutes — across 16+ boards, with answer keys.
Explore more
Similar questions
Three vertices of a rectangle ABCD are A(3, 1), B(-3, 1) and C(-3, 3). plot these points on a graph paper and find the coordinates of the fourth vertex D. Also find the area of rectangle ABCD.

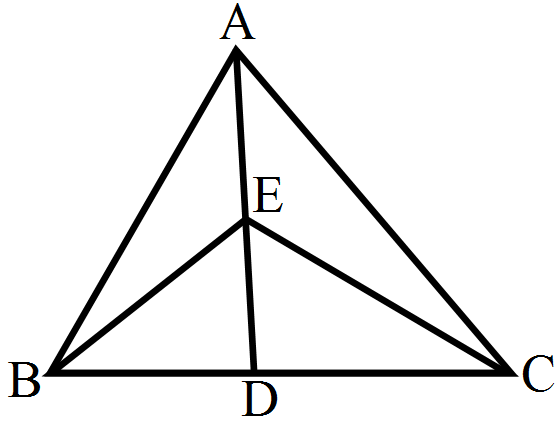

The vertex A of $\triangle\text{ABC}$ is joined to a point D on the side BC. The mid-point of AD is E.
Prove that $\text{ar}(\triangle\text{BEC})=\frac{1}{2}\text{ar}(\triangle\text{ABC}).$
→Prove that $\text{ar}(\triangle\text{BEC})=\frac{1}{2}\text{ar}(\triangle\text{ABC}).$
Prove that the angle in a segment greater than a semi-circle is less than a right angle.
In the adjoining figure, D, E, F are the midpoints of the sides BC, CA and AB respectively, of $\triangle\text{ABC}.$ Show that $\angle\text{EDE}=\angle\text{A},\angle\text{DEF}=\angle\text{B}$ and $\angle\text{DFE}=\angle\text{C}.$
→Find the rational roots of the polynomial $f(x) = 2x^3 + x^2 - 7x - 6$
→Find the area of the quadrilateral $A B C D$ in which $A B=3 cm, B C=4 cm, C D=4 cm, D A=5 cm$ and $A C=5 cm$.
→ABC is a right angled triangle in which $\angle\text{A}=90^\circ$ and $\text{AB}=\text{AC}.$ and $\angle\text{B}$ and $\angle\text{C}.$
→The ratio of two numbers is 5 : 7. If 40 is added in each number, then the ratio becomes
25 : 31, Find the numbers.
25 : 31, Find the numbers.
A bag contains 4 white balls and some red balls. If the probability of drawing a white ball from the bag is $\frac{2}{5},$ find the number of red balls in the bag.
→If $\text{x}^4+\frac{1}{\text{x}^4}=194,$ find $\text{x}^3+\frac{1}{\text{x}^3},\ \text{x}^2+\frac{1}{\text{x}^2}$ and $\text{x}+\frac{1}{\text{x}}.$
→
