Question

Construct a $\triangle\text{ABC},$ in which BC = 5cm, $\angle\text{C}=60^\circ$ and altitude from A is equal to 3cm. Construct a $\triangle\text{ADE}$ similar to $\triangle\text{ABC},$ such that each side of $\triangle\text{ADE}$ is $\frac32$ times the corresponding side of $\triangle\text{ABC}$ Write the steps of construction.

✓

Answer

Step of constuction:

Draw a line segment BC = 5cm
Construct $\angle\text{BCP}=60^\circ$
Draw a line GH || BC at a distance of 3cm, intersecting CP at A.
Join AB and draw altitude $\text{AM}\perp\text{BC}.$ Thus, $\triangle\text{ABC}$ is obtained.
Extend AB to D such that $\text{AD}=\frac32\text{AB}.$
Draw DE || BC, cutting AC produced at E.

Then, $\triangle\text{ADE}$ is the required triangle similar to $\triangle\text{ABC}$ such that each side of $\triangle\text{ADE}$ is $\frac32\text{times}$ the corresponding side of $\triangle\text{ABC}$

Need a full question paper?

Generate a complete, print-ready paper with questions like this in minutes — across 16+ boards, with answer keys.

Start Generating Free

Explore more

More "5 Marks Question" from Constructions→Constructions — all question types→Maths STD 10 question papers→Maharashtra Board STD 10 question papers→Maharashtra Board question paper generator→

Similar questions

If $\sec\theta+\tan\theta=\text{p},$ prove that:$\tan\theta=\frac12\Big(\text{p}+\frac{1}{\text{p}}\Big)$

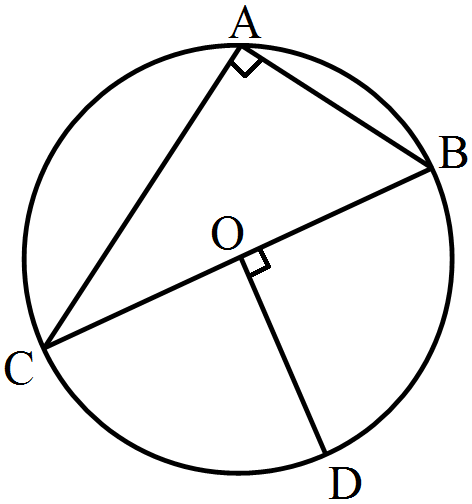

In the given figure, $O$ is the centre of the circle with $\text{AC}=24\text{cm},\ \text{AB}=7\text{cm}$ and $\angle\text{BOD}=90^\circ$ Find the area of shaded region. $\big[\text{Use }\pi=3.14\big]$
