  1. Define current sensitivity of a galvanometer. Write its expression.
  2. A galvanometer has resistance G and shows full scale deflection for current Ig.
  1. How can it be converted into an ammeter to measure current up to I0(I0 > Ig)?
  2. What is the effective resistance of this ammeter?
✓

Answer

  1. Current sensitivity: It is defined as the amount of deflection produced per unit magnitude of current passes.

$\text{C}_\text{s}=\frac{\phi}{\text{I}}\text{ or }\text{C}_\text{s}=\frac{\text{NAB}}{\mu,}$

  1.
  1.

(G) can be converted into an ammeter by connected a small stunt resistance parallel to (G) coil so that,

$\text{IgG}=\big(\text{I}_0-\text{I}_\text{g}\big)\text{S}$

$\therefore\text{S}=\frac{\text{IgG}}{\text{I}_0-\text{I}_\text{g}}$

  1. Effective resistance of $(\text{A})\Rightarrow\frac{\text{GS}}{\text{G}+\text{S}}$

Need a full question paper?

Generate a complete, print-ready paper with questions like this in minutes — across 16+ boards, with answer keys.

Start Generating Free

Explore more

More "3 Marks Question" from Moving Charges and Magnetism→Moving Charges and Magnetism — all question types→Physics STD 12 Science question papers→Gujarat Board STD 12 Science question papers→Gujarat Board question paper generator→

Similar questions

Draw the intensity distributions for (i) the fringes produced in interference, and (ii) the diffraction bands produced due to single slit. Write two points of difference between the phenomena of interference and diffraction.
→

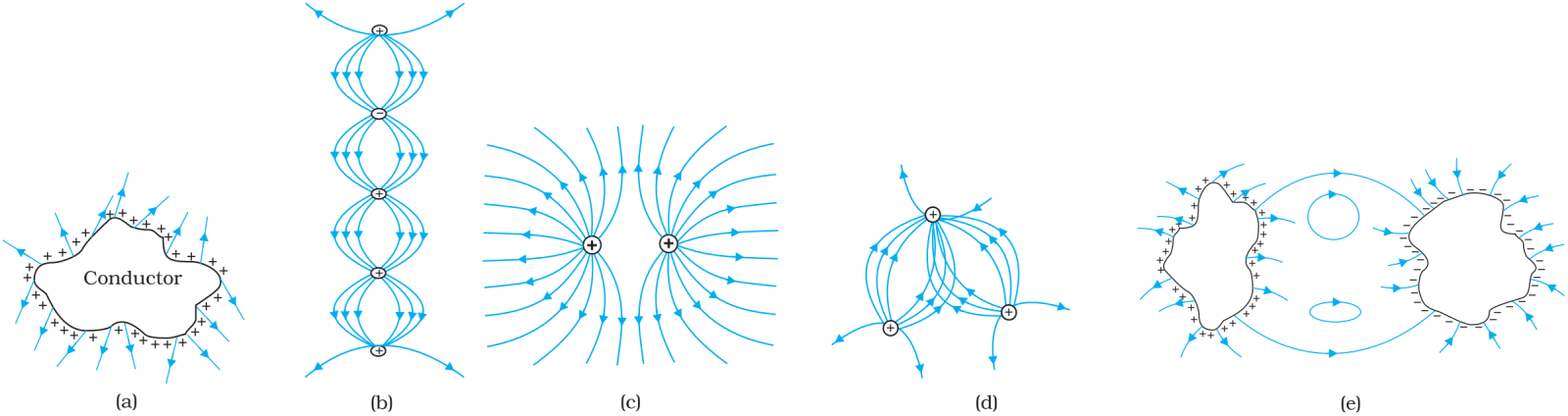

Which among the curves shown in figure cannot possibly represent electrostatic field lines?

→
