Semiconductor Electronics: Materials, Devices and Simple Circuits — Physics STD 12 Science — Question

Gujarat BoardEnglish MediumSTD 12 SciencePhysicsSemiconductor Electronics: Materials, Devices and Simple Circuits5 Marks
✓

Answer

Rectification : Rectification is the process by which alternating current (voltage) is converted into direct current (voltage). The device used for this is called rectifier. A (P-N) junction diode conducts current in forward bias and does not conduct current in reverse bias (negligible current). This unidirectional property of diode is used in rectification.
Circuit diagram of full wave rectifier :
The semiconductor related to the energy band diagram given is an n-type semiconductor.

Need a full question paper?

Generate a complete, print-ready paper with questions like this in minutes — across 16+ boards, with answer keys.

Start Generating Free

Explore more

More "5 Marks Questions" from Semiconductor Electronics: Materials, Devices and Simple Circuits→Semiconductor Electronics: Materials, Devices and Simple Circuits — all question types→Physics STD 12 Science question papers→Gujarat Board STD 12 Science question papers→Gujarat Board question paper generator→

Similar questions

Find the maximum magnifying power of a compound Microscope having a 25 diopter lens as the objective, a 5 diopter lens as the eyepiece and the separation 30cm between the two lenses. The least distance for clear vision is 25cm.
→
If the above capacitor is connected across a 6.0V battery, find:
  1. The charge supplied by the battery.
  2. The induced charge on the dielectric.
  3. The net charge appearing on one of the coated surfaces.
→
What is meant by electric field intensity? Write its units and dimensional formula. Find the expression for the electric field intensity at a point due to a point charge. Draw a graph between electric field intensity E and distance r.
→
Let $\text{X}=\overline{\text{ABC}}+\overline{\text{BCA}}+\overline{\text{CAB}}.$ Evaluate X for:
  1. $\text{A}=1,\text{B}=0,\text{C}=1$
  2. $\text{A}=\text{B}=\text{C}=1$
  3. $\text{A}=\text{B}=\text{C}=0$
→

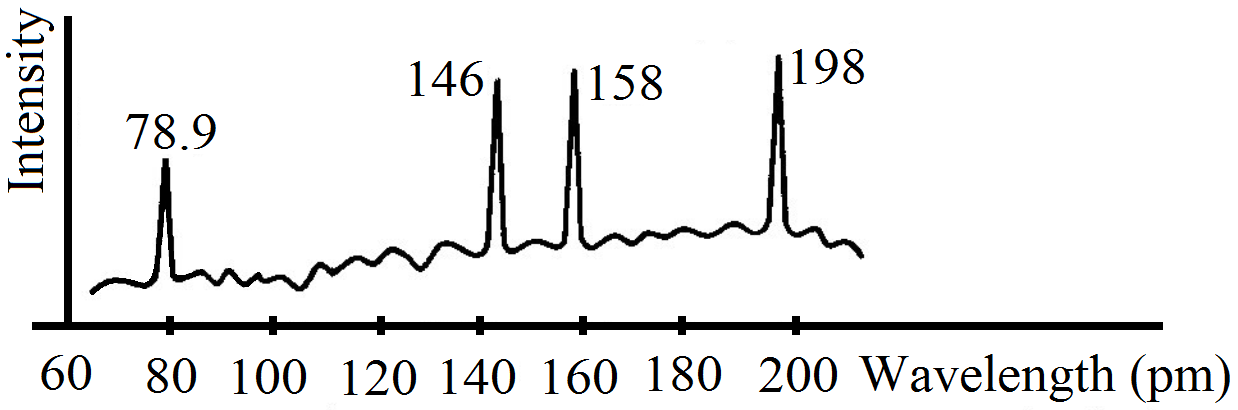

Continuous X-rays are made to strike a tissue paper soaked with polluted water. The incoming X-rays excite the atoms of the sample by knocking out the electrons from the inner shells. Characteristic X-rays are analysed and the intensity is plotted against the wavelength. Assuming that only $\text{K}_\alpha$ intensities are detected, list the elements present in the sample from the plot. Use Moseley's equation v - (25 × 1014Hz)(Z - 1)2.

→
