Question
Define surface tension. Obtain the relation between surface tension and surface energy.
✓
Answer
Surface tension $T$ is defined as, the tangential force acting per unit length on both sides of an imaginary line drawn on the free surface of liquid.
Relation between surface tension and surface energy

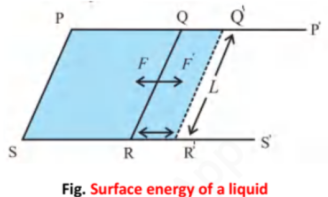

Consider a rectangular frame $P ^{\prime} PSS$ ' having a movable wire QR . Let $Q R=P S=L$. If a soap film is formed on the frame PQRS, then the surface tension will try to pull the wire inward by a force $F$.
$\therefore $ Surface tension $=\frac{\text { Force }}{\text { Free surface }}$
$\therefore \ T=\frac{F}{2 L}$
$\therefore \ F=T(2 L)$
If the wire is pulled out to $Q ^{\prime} R$ ' through distance ' $d x^{\prime}$ ', then work done is given by
$d w=F . d x$
$\therefore \ d w=T .2 L . d x$
But increase in area $=d A=2 L . d x$
$\therefore \ d w=T . d A$
This work done in stretching the film is stored in the area dA of the film as its potential energy. This energy is called surface energy.
$\therefore $ Surface energy $=T . d A$
Above expression represents the relationship between surface tension and surface energy.
Relation between surface tension and surface energy
Consider a rectangular frame $P ^{\prime} PSS$ ' having a movable wire QR . Let $Q R=P S=L$. If a soap film is formed on the frame PQRS, then the surface tension will try to pull the wire inward by a force $F$.
$\therefore $ Surface tension $=\frac{\text { Force }}{\text { Free surface }}$
$\therefore \ T=\frac{F}{2 L}$
$\therefore \ F=T(2 L)$
If the wire is pulled out to $Q ^{\prime} R$ ' through distance ' $d x^{\prime}$ ', then work done is given by
$d w=F . d x$
$\therefore \ d w=T .2 L . d x$
But increase in area $=d A=2 L . d x$
$\therefore \ d w=T . d A$
This work done in stretching the film is stored in the area dA of the film as its potential energy. This energy is called surface energy.
$\therefore $ Surface energy $=T . d A$
Above expression represents the relationship between surface tension and surface energy.
