Question
Describe the main difference between Fraunhofer and Fresnel's diffraction.
✓
Answer
There are following differences between these two :
| S.No. | Fraunhofer Diffraction | Fresnel Diffraction |
| 1. | The center of the diffraction pattern is always bright. | The center of the diffraction pattern is sometimes bright and sometimes dark. |
| 2. | Both the source and the screen are located at an effectively or actually infinite distance from the diffractor. | Both the source and the screen are at a limited distance from the diffractor |
| 3. | Wave fronts are plane. | Wave fronts are spherical or cylindrical. |
| 4. | Convex lens is used in this. | Convex lenses are not used in this. |
| 5. | There may be a combined effect of diffraction of more than one diffractor. | In this there is diffraction effect of only one diffractor. |
| 6. | Its theoretical analysis is done with the help of adequate and precise mathematics. | Its theoretical analysis is complex and gives only approximate values. |
| 7. | In this type of diffraction, the inclination of the wave fronts towards the diffractor is important. | In this diffraction, the distances of the source and the screen from the diffractor are important. |
Need a full question paper?
Generate a complete, print-ready paper with questions like this in minutes — across 16+ boards, with answer keys.
Explore more
Similar questions
To ensure almost 100 per cent transmittivity, photographic lenses are often coated with a thin layer of dielectric material. The refractive index of this material is intermediated between that of air and glass (which makes the optical element of the lens). A typically used dielectric film is MgF2 (n = 1.38). What should the thickness of the film be so that at the center of the visible speetrum $(5000\mathring{\text{A}})$ there is maximum transmission.
→Obtain an expression for motional electromotive force.
A 2kg block is placed over a 4kg block and both are placed on a smooth horizontal surface. The coefficient of friction between the blocks is 0.20. Find the acceleration of the two blocks if a horizontal force of 12N is applied to:
- The upper block.
- The lower block. Take g = 10m/s2.
A simple pendulum of length I is suspended through the ceiling of an elevator. Find the time period of small oscillations if the elevator,
- Is going up with an acceleration a0
- Is going down with an acceleration a0.
- Is moving with a uniform velocity.
An electron is emitted with negligible speed from the negative plate of a parallel-plate capacitor charged to a potential difference V. The separation between the plates is d and a magnetic field Bexists in the space, as shown in the figure. Show that the electron will fail to strike the upper plates if $\text{d}>\Big(\frac{2\text{m}_\text{e}\text{v}}{\text{eB}^2}\Big)^{\frac{1}{2}}.$
→
A small source of sound S of frequency 500Hz is attached to the end of a light string and is whirled in a vertical circle of radius 1.6m. The string just remains tight wher the source is at the highest point.
- An observer is located in the same vertical plane at a large distance and at the same height as the centre of the circle figure. The speed of sound in air = 330m/s and g = 10m/s 2. Find the maximum frequency heard by the observer.
- An observer is situated at a large distance vertically above the centre of the circle. Find the frequencies heard by the observer corresponding to the sound emitted by the source when it is at the same height as the centre.

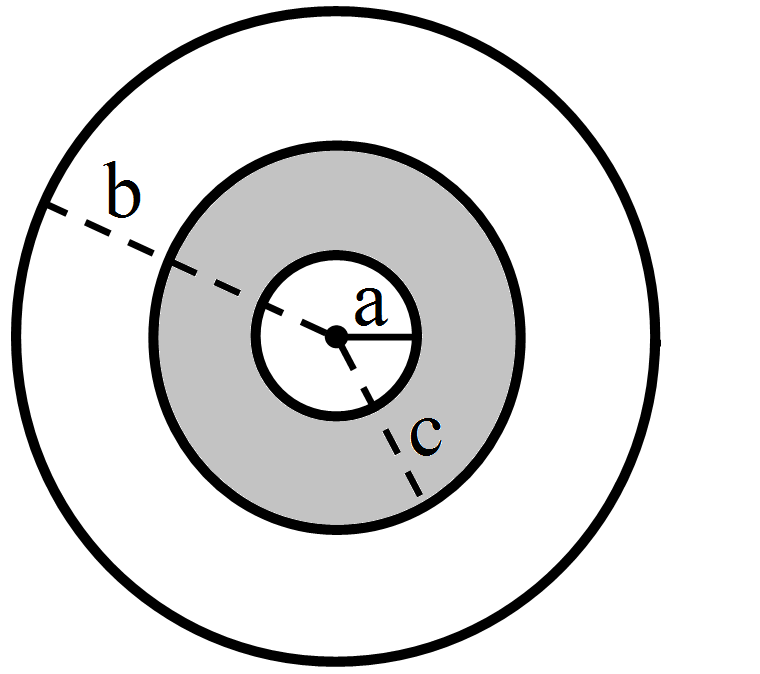

A sphercial capacitor is made of two conducting spherical shells of radii a and b. The space between the shells is filled with a dielectric of dielectric constant K up to a radius c as shown in figure. Calculate the capacitance.
