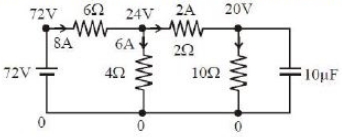

Determine the charge on the capacitor in the following circuit ................ $\mu C$
JEE MAIN 2019, Medium
