Question

Draw a parallelogram ABCD in which BC = 5cm, AB = 3cm and $\angle\text{ABC}=60^\circ,$ divide it into triangles BCD and ABD by the diagonal BD. Construct the triangle BD'C' similar to $\triangle\text{BDC}$ with scale factor $\frac{4}{3}.$ Draw the line segment D'A' parallel to DA where A' lies on extended side BA. Is A'BC'D' a parallelogram?

✓

Answer

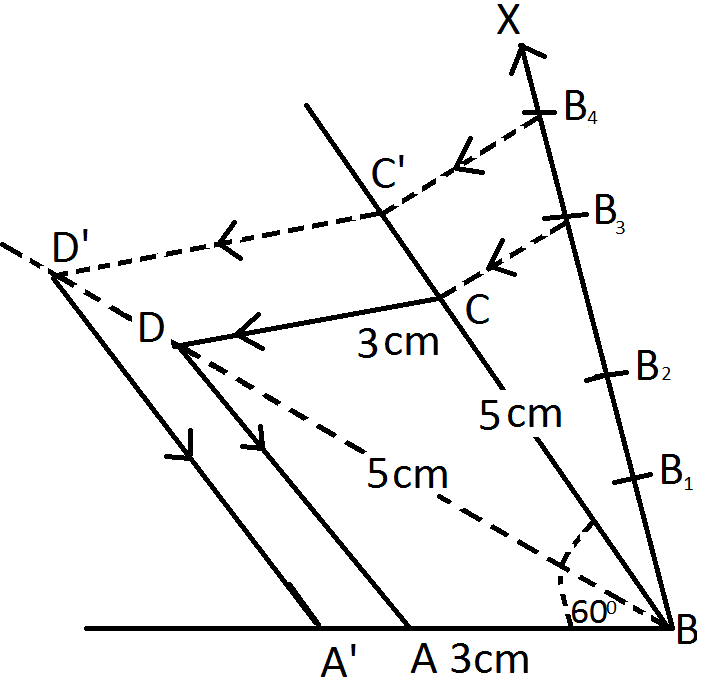

Steps of construction:

1. Draw a line segment $A B=3 cm$.
2. Make $\angle A B C=60^{\circ}$ such that $B C=5 cm$.
3. Draw $C D \| A B$ and $A D \| B C, \square A B C D$ is the required parallelogram.
4. Join diagonal $B D$ and produce it.
5. Make acute angle $C B X$ on opposite of $D$ with respect to $B C$.
6. Mark (equi spaced) $B_1, B_2, B_3, B_4$ by compass.
7. Join $B_3 C$ and draw $B_3 C \| B_4 C^{\prime}$ on $B C$ produced.
8. Again, draw $C^{\prime} D^{\prime} \| C D$, where $D^{\prime}$ is on $B D$ produced.
9. Now, draw $D^{\prime} A^{\prime} \| D A$ where $A^{\prime}$ is on $B A$ produced. Parallelogram $A^{\prime} B C^{\prime} D^{\prime}$ is similar to parallelogram $A B C D$ with scale factor $\frac{4}{3}$.

Need a full question paper?

Generate a complete, print-ready paper with questions like this in minutes — across 16+ boards, with answer keys.

Start Generating Free

Explore more

More "5 Marks Questions" from Constructions→Constructions — all question types→Maths STD 10 question papers→CBSE Board STD 10 question papers→CBSE Board question paper generator→

Similar questions

The angle of elevation of the top of an unifinished tower at a distance of 75m from its base is 30°. How much higher must the tower be raised so that the angle of elevation of its top at the same point may be 60°? $\big[\text{Take}\sqrt{3}=1.732\big]$

Divide a line segment of length 9cm internally in the ratio 4 : 3. Also, give justification of the construction.

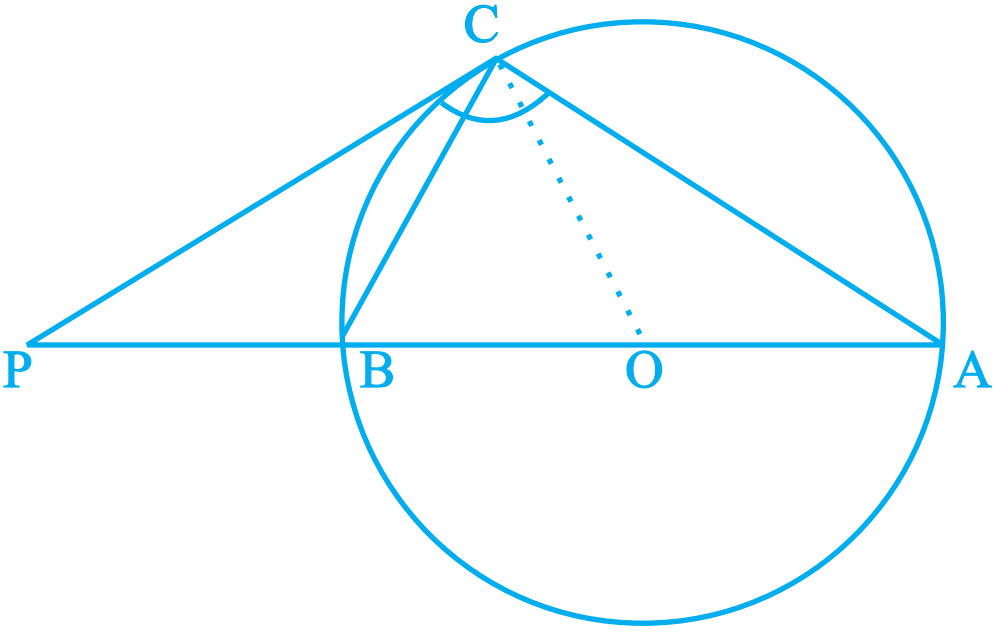

The tangent at a point C of a circle and a diameter AB when extended intersect at P. If $\angle\text{PCA}=110^\circ,$ find $\angle\text{CBA}.$

[Hint: Join C with centre O.]

A girl of height 90 cm is walking away from the base of a lamp-post at a speed of 1.2 m/sec. If the lamp is 3.6 m above the ground, find the length of her shadow after 4 seconds.

Evaluate the following:
If $\sin(\text{A}+\text{B})=\sin\text{A}\cos\text{B}+\cos\text{A}\sin\text{B}$ and $\cos(\text{A}-\text{B})=\cos\text{A}\cos\text{B}+\sin\text{A}\sin\text{B},$ Find the values of:

$\sin75^\circ$
$\cos15^\circ.$

What length of a solid cylinder 2cm in diameter must be taken to recast into a hollow cylinder of length 16cm, external diameter 20 cm and thickness 2.5mm?

From each end of a solid metal cylinder, metal was scooped out in hemispherical form of same diameter. The height of the cylinder is 10 cm and its base is of radius 10 cm. The rest of the cylinder is melted and converted into a cylindrical wire of 1.4 cm thickness. Find the length of the wire. $[ \text {Use}$ $=\frac{22}{7}]$

A wooden article was made by scooping out a hemisphere from each end of a solid cylinder, as shown in the figure. If the height of the cylinder is 5.8 cm and its base is of radius 2.1 cm , find the total surface area of the article.

Find:
Which term in the $A.P. 121, 117, 113, ..... $ is its first negative term?

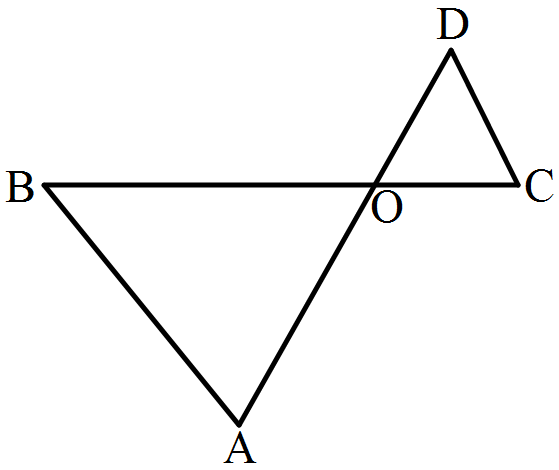

In the given figure, $\triangle\text{OAB}\sim\triangle\text{OCD}.$ If AB = 8cm, BO = 6.4cm, OC = 3.5cm and CD = 5cm, find.
