MCQ

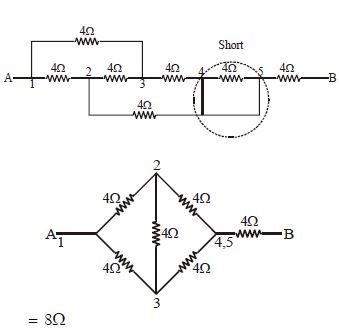

Equivalent resistance between $A$ and $B$ is ............ $\Omega$
- A$4$
- ✓$8$
- C$2$
- D$1$
✓
Answer
Correct option: B.
$8$
b
