MCQ
Equivalent resistance of the following network is____ $\Omega$.
- A$4$
- B$3$
- ✓$1$
- D$5$
✓
Answer
Correct option: C.
$1$
c

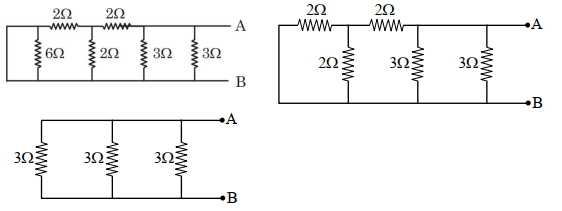

$6 \ \Omega$ is short circuit
$6 \ \Omega$ is short circuit
${R}_{\mathrm{eq}}=3 \times \frac{1}{3}=1\ \Omega$
