Question
Explain quantitatively the order of magnitude difference between the diamagnetic susceptibility of $N_2 (~5 \times 10^{-9})$ (at STP) and Cu $(~10^{-5}).$
✓
Answer
Key concept:
Magnetic susceptibility: It is the property of the substance which shows how easily a substance can be magnetised. It can also be defined as the ratio of intensity of magnetisation (I) in a substance to the magnetic intensity (H) applied to the substance, i.e., $\text{XM}=\frac{\text{I}}{\text{H}}$.
According to the problem, we have
Density of nitrogen $\rho_{\text{N}_2}=\frac{28\text{g}}{22.4\text{L}}=\frac{28\text{g}}{22400\text{cc}}$
Also, density of copper $\rho_{\text{Cu}}=\frac{8\text{g}}{22.4\text{L}}=\frac{8\text{g}}{22400\text{cc}}$
So, ration of both densities
$\frac{\rho_{\text{N}_2}}{\rho_\text{Cu}}=\frac{28}{22400}\times\frac{1}{8}=16\times10^{-4}$
Also given $\frac{\chi_{\text{N}_2}}{\chi_\text{Cu}}=\frac{5\times10^{-9}}{10^{-5}}=5\times10^{-4}$
we know that, $\chi=\frac{\text{Magentisation (M)}}{\text{Magnetic intensity (H)}}$
$=\frac{\text{Magnetic moment (M)/Volime (V)}}{\text{H}}$
$=\frac{\text{M}}{\text{HV}}=\frac{\text{M}}{\text{H}(\text{mass/density})}=\frac{\text{M}\rho}{\text{Hm}}$
$\chi\propto\rho\ \ \Big(\because\ \frac{\text{M}}{\text{Hm}}=\text{constant}\Big)$
Hence, $\frac{\chi_{\text{N}_2}}{\chi_\text{Cu}}=\frac{\rho_{\text{N}_2}}{\rho_\text{Cu}}=1.6\times10^{-4}$
Therefore, we can say that magnitude difference or major difference between the diamagnetic susceptibility of $N_2$ and Cu is $1.6 \times 10^{-4}.$
Magnetic susceptibility: It is the property of the substance which shows how easily a substance can be magnetised. It can also be defined as the ratio of intensity of magnetisation (I) in a substance to the magnetic intensity (H) applied to the substance, i.e., $\text{XM}=\frac{\text{I}}{\text{H}}$.
According to the problem, we have
Density of nitrogen $\rho_{\text{N}_2}=\frac{28\text{g}}{22.4\text{L}}=\frac{28\text{g}}{22400\text{cc}}$
Also, density of copper $\rho_{\text{Cu}}=\frac{8\text{g}}{22.4\text{L}}=\frac{8\text{g}}{22400\text{cc}}$
So, ration of both densities
$\frac{\rho_{\text{N}_2}}{\rho_\text{Cu}}=\frac{28}{22400}\times\frac{1}{8}=16\times10^{-4}$
Also given $\frac{\chi_{\text{N}_2}}{\chi_\text{Cu}}=\frac{5\times10^{-9}}{10^{-5}}=5\times10^{-4}$
we know that, $\chi=\frac{\text{Magentisation (M)}}{\text{Magnetic intensity (H)}}$
$=\frac{\text{Magnetic moment (M)/Volime (V)}}{\text{H}}$
$=\frac{\text{M}}{\text{HV}}=\frac{\text{M}}{\text{H}(\text{mass/density})}=\frac{\text{M}\rho}{\text{Hm}}$
$\chi\propto\rho\ \ \Big(\because\ \frac{\text{M}}{\text{Hm}}=\text{constant}\Big)$
Hence, $\frac{\chi_{\text{N}_2}}{\chi_\text{Cu}}=\frac{\rho_{\text{N}_2}}{\rho_\text{Cu}}=1.6\times10^{-4}$
Therefore, we can say that magnitude difference or major difference between the diamagnetic susceptibility of $N_2$ and Cu is $1.6 \times 10^{-4}.$
Need a full question paper?
Generate a complete, print-ready paper with questions like this in minutes — across 16+ boards, with answer keys.
Explore more
Similar questions
A rectangular loop of sides 25cm and 10cm carrying a current of 15A is placed with its longer side parallel to a long straight conductor 2.0cm apart carrying a current of 25A (fig). What is the net force on the loop?
Calculate the electric field in a copper wire of cross-sectional area $2.0mm^2$ carrying a current of 1A.
The resistivity of copper $=1.7\times10^{-8}\Omega\text{-m}.$
→The resistivity of copper $=1.7\times10^{-8}\Omega\text{-m}.$
- With the help of a diagram, explain the principle and working of a moving coil galvanometer.
- What is the importance of a radial magnetic field and how is it produced?
- Why is it that while using a moving coil galvanometer as a voltmeter a high resistance in series is required whereas in an ammeter a shunt is used?
The magnetic field B and the magnetic intensity H in material are found to be 1.6T and 1000A/m reepectively. Calculate the relative permeability $\mu_\text{r}$ and the susceptibility x of the material.
→Two large conducting plates are placed parallel to each other with a separation of 2.00cm between them. An electron starting from rest near one of the plates reaches the other plate in 2.00 microseconds. Find the surface charge density on the inner surfaces.
An LR circuit with emf $\in$ is connected at t = 0.
→- Find the charge Q which flows through the battery during 0 to t.
- Calculate the work done by the battery during this period.
- Find the heat developed during this period.
- Find the magnetic field energy stored in the circuit at time t.
- Verify that the results in the three parts above are consistent with energy conservation.
There are two current carrying planar coils made each from identical wires of length L. $C_1$ is circular (radius R ) and $C_2$ is square (side a). They are so constructed that they have same frequency of oscillation when they are placed in the same uniform B and carry the same current. Find a in terms of R.

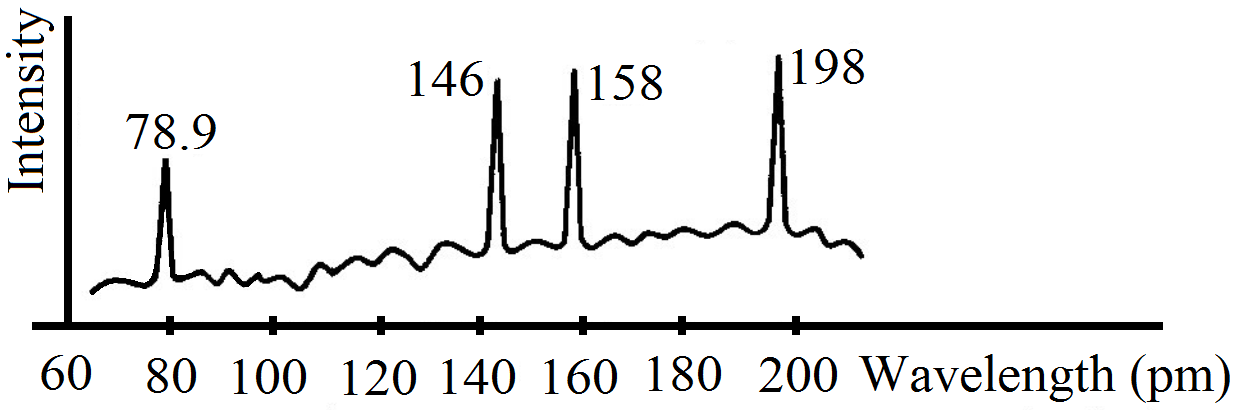

→Continuous X-rays are made to strike a tissue paper soaked with polluted water. The incoming X-rays excite the atoms of the sample by knocking out the electrons from the inner shells. Characteristic X-rays are analysed and the intensity is plotted against the wavelength. Assuming that only $\text{K}_\alpha$ intensities are detected, list the elements present in the sample from the plot. Use Moseley's equation $v - (25 \times 10^{14}Hz)(Z - 1)^2.$
