Explain why: An optical pyrometer (for measuring high temperature… - Vidyadip

Question

Explain why:
An optical pyrometer (for measuring high temperatures) calibrated for an ideal black body radiation gives too low a value for the temperature of a red hot iron piece in the open, but gives a correct value for the temperature when the same piece is in the furnace.

✓

Answer

An optical pyrometer calibrated for an ideal black body radiation gives too low a value for temperature of a red hot iron piece kept in the open.
Black body radiation equation is given by:
$\text{E}=\sigma(\text{T}^4-\text{T}_0^4)$
Where,
E = Energy radiation.
T = Temperature of optical pyrometer.
T₀ = Temperature of open space.
$\sigma$ = Constant.
Hence, an increase in the temperature of open space reduces the radiation energy.
When the same piece of iron is placed in a furnace, the radiation energy, $\text{E}=\sigma\text{T}^4$

Need a full question paper?

Generate a complete, print-ready paper with questions like this in minutes — across 16+ boards, with answer keys.

Start Generating Free

Explore more

More "3 Marks Question" from Thermal Properties of Matter→Thermal Properties of Matter — all question types→Physics STD 11 Science question papers→Rajasthan Board STD 11 Science question papers→Rajasthan Board question paper generator→

Similar questions

When an apple falls from a tree what happens to its gravitational potential energy just as it reaches the ground? After it strikes the ground?

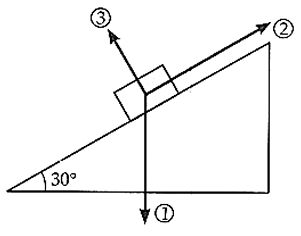

A block of wood of mass 3 kg is resting on the surface of a rough inclined surface, inclined at an angle $\theta$ as shown in the figure.

a. Name the forces $(1,2,3)$.
b. If the coefficient of static friction is 0.2 , calculate the value of all three forces.
$
\text { (use } g=10 m / s^2 \text { ) }
$

Define the terms resultant or equivalent of two forces. Two forces F₁ and F₂ acting at an angle $\theta$ on a body simultaneously have a resultant F. Show that $\theta=\cos^{-1}\Big[\frac{(\text{F}_1^2+\text{F}_2^2+2\text{F}_1\text{F}_2\cos\theta)}{2\text{F}_1\text{F}_2}\Big]$

A monkey of mass 15kg is climbing on a rope with one end fixed to the ceiling. If it wishes to go up with an acceleration of 1m/s², how much force should it apply to the rope? If the rope is 5m long and the monkey starts from rest, how much time will it take to reach the ceiling?

Explain why:
A brass tumbler feels much colder than a wooden tray on a chilly day.

A U-shaped wire is dipped in a soap solution, and removed. The thin soap film formed between the wire and the light slider supports a weight of 1.5 × 10–2N (which includes the small weight of the slider). The length of the slider is 30cm. What is the surface tension of the film?

A bat emits ultrasonic sound of frequency 1000 kHz in air. If the sound meets a water surface, what is the wavelength of (a) the reflected sound, (b) the transmitted sound? Speed of sound in air is 340m s^–1 and in water 1486m s^–1.

State polygon law of vectors and show that it can be deduced from triangle law of vectors.

Find the value of 60W on a system having 100g, 20cm and 1 min as the fundamental units.

Consider two pairs of neutrons. In each pair, the separation between the neutrons is the same. Can the force between the neutrons have different magnitudes for the two pairs?
