Figure given below shows two identical parallel plate capacitors connected to a battery with switch $S$ closed. The switch is now opened and the free space between the plate of capacitors is filled with a dielectric of dielectric constant $3$. What will be the ratio of total electrostatic energy stored in both capacitors before and after the introduction of the dielectric

A
$3:1$
B
$5:1$
✓
$3:5$
D
$5:3$

✓

Answer

Correct option: C.

$3:5$

c
(c) Initially potential difference across both the capacitor is same hence energy of the system is
${U_1} = \frac{1}{2}C{V^2} + \frac{1}{2}C{V^2} = C{V^2}$$……(i)$
In the second case when key $K$ is opened and dielectric medium is filled between the plates, capacitance of both the capacitors becomes $3C$, while potential difference across $A$ is $V$ and potential difference across $B$ is $\frac{V}{3}$ hence energy of the system now is
${U_2} = \frac{1}{2}\,(3C){V^2} + \frac{1}{2}\,(3C)\,{\left( {\frac{V}{3}} \right)^2}$$ = \frac{{10}}{6}\,C{V^2}$$……(ii)$
So, $\frac{{{U_1}}}{{{U_2}}} = \frac{3}{5}$

Need a full question paper?

Generate a complete, print-ready paper with questions like this in minutes — across 16+ boards, with answer keys.

Start Generating Free

Explore more

More "M.C.Q (1 Marks)" from 2. Electric potential and capacitance→2. Electric potential and capacitance — all question types→Physics STD 12 Science question papers→CBSE Board STD 12 Science question papers→CBSE Board question paper generator→

Similar questions

A long solenoid is producing magnetic field on its axis is $B$. If it is cuts into four equal parts and for same current, half number of turns wound on any on piece than value of magnetic field on it axis becomes

Two identical positive charges are placed on the $y$-axis at $y=-a$ and $y=+a$. The variation of $V$ (electric potential) along $x$-axis is shown by graph

Infinite charges of magnitude $q$ each are lying at $x =1, 2, 4, 8...$ meter on $X-$axis. The value of intensity of electric field at point $x = 0$ due to these charges will be

A $4\,\mu F$ conductor is charged to $400\, volts$ and then its plates are joined through a resistance of $1\,k\Omega $. The heat produced in the resistance is ............... $J$

Two condensers, one of capacity $C$ and other of capacity $C/2$ are connected to a $V-$ volt battery, as shown in the figure. The work done in charging fully both the condensers is

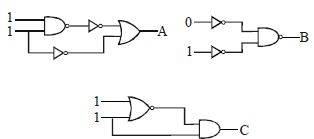

In the following combinations of logic gates, the outputs $A, B$ and $C$ are respectively
