3.2 , motion in plane — Physics STD 11 Science — Question

Gujarat BoardEnglish MediumSTD 11 SciencePhysics3.2 , motion in plane1 Mark
MCQ
Figure shows a projectile thrown with speed $u=20 \,m / s$ at an angle $30^{\circ}$ with horizontal from the top of a building $40 \,m$ high. Then the horizontal range of projectile is ........... $m$
  • A
    $20 \sqrt{3}$
  • ✓
    $40 \sqrt{3}$
  • C
    $40$
  • D
    $20$
✓

Answer

Correct option: B.
$40 \sqrt{3}$
b
(b)

$S_y=u_y T+\frac{1}{2} g_y T^2$

$-40=4 \sin 30 T-\frac{1}{2} g T^2$

$-40=20 \times \frac{1}{2} T-5 T^2$

$-8=2 T-T^2$

$T^2-2 T-8=0$

$T^2-4 T+2 T-8=0$

$T=-2,4$

$R=u \cos \theta T=20 \times \frac{\sqrt{3}}{2} \times 4$

$R=40 \sqrt{3} \,m$

Need a full question paper?

Generate a complete, print-ready paper with questions like this in minutes — across 16+ boards, with answer keys.

Start Generating Free

Explore more

More "M.C.Q (1 Marks)" from 3.2 , motion in plane→3.2 , motion in plane — all question types→Physics STD 11 Science question papers→Gujarat Board STD 11 Science question papers→Gujarat Board question paper generator→

Similar questions

One end of massless rope, which passes over a massless and frictionless pulley $P$ is tied to a hook while the other is free. Maximum tension the rope bear is $360 N$. With what value of maximum safe acceleration (in $m s^{-2}$) can a man of $60 kg$ climb on the rope?
→

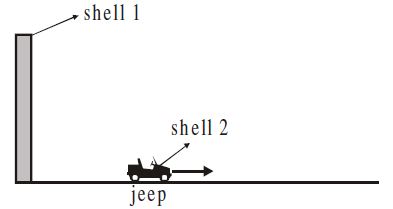

A shell is fired at a speed of $200\ m/s$ at an angle of $37^o$ above horizontal from top of a tower $80\ m$  high. At the same instant another shell was fired from a jeep travelling away from the tower at a speed of $10\ m/s$ as shown. The velocity of this shell relative to jeep is $250\  m/s$ at an angle of $53^o$ with horizontal. Find the time (in $sec$) taken by the two shells to come closest.
→
