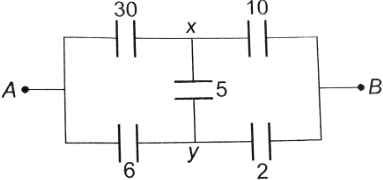

Find equivalent capacitance across $AB$.....$ \mu F$ (all capacitances in $\mu F$)
Diffcult
Download our app for free and get started
Download our appand get started for free
Experience the future of education. Simply download our apps or reach out to us for more information. Let's shape the future of learning together!No signup needed.*
Similar Questions
- 1The switch in circuit shifts from $1$ to $2$ when $V_C > 2V/3$ and goes back to $1$ from $2$ when $V_C < V/3$ . The voltmeter reads voltage as plotted. What is the period $T$ of the wave form in terms of $R$ and $C$ ?View Solution
- 2In the circuit shown in the figure, the potential difference across the $4.5\,\mu F$ capacitor is.......$volts$View Solution
- 3In a region, electric field varies as $E = 2x^2 -4$ where $x$ is the distance in metre from origin along $x-$ axis. A positive charge of $1\,\mu C$ is released with minimum velocity from infinity for crossing the origin, thenView Solution
- 4Two equal positive point charges are kept at points $A$ and $B$ . The electric potential, while moving from $A$ to $B$ along straight lineView Solution
- 5The plates of a parallel plate condenser are pulled apart with a velocity $v$. If at any instant their mutual distance of separation is $d$, then the magnitude of the time of rate of change of capacity depends on $d$ as followsView Solution
- 6Capacitance of a parallel plate capacitor becomes $4/3$ times its original value if a dielectric slab of thickness $t = d/2$ is inserted between the plates ($d$ is the separation between the plates). The dielectric constant of the slab isView Solution
- 7A capacitor is charged to $200\, volt$ it has $0.1$ coulomb charge. When it is discharged, energy will be.....$J$View Solution
- 8A spherical conductor of radius $2m$ is charged to a potential of $120\, V$. It is now placed inside another hollow spherical conductor of radius $6m$. Calculate the potential to which the bigger sphere would be raised......$V$View Solution
- 9View SolutionA sheet of aluminium foil of negligible thickness is introduced between the plates of a capacitor. The capacitance of the capacitor
- 10$IAn$ empty thick conducting shell of inner radius $a$ and outer radius $b$ is shown in figure.If it is observed that the inner face of the shell carries a uniform charge density $-\sigma$ and the surface carries a uniform charge density $ '\sigma '$View Solution
Choose the correct statement related to the potential of the shell in absence of $q_B$
