MCQ
Find equivalent resistance between $A$ and $B$
- A$R$
- B$\frac{{3R}}{4}$
- ✓$\frac{R}{2}$
- D$2R$
✓
Answer
Correct option: C.
$\frac{R}{2}$
c

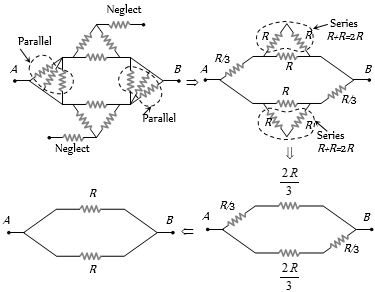

(c) Given circuit can be redrawn as follows
$ \Rightarrow {R_{eq}} = \frac{R}{2}$
(c) Given circuit can be redrawn as follows
$ \Rightarrow {R_{eq}} = \frac{R}{2}$
