Question

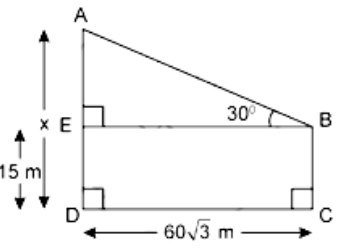

Find the value $'x\ ',$ if:
✓
Answer
$\text{BEDC}$ is a rectangle.
$\Rightarrow BE$
$ = DC$
$ =60 \sqrt{3}\ m$
In right $\triangle A E B$,
$\tan 30^{\circ}=\frac{ AE }{ BE }$
$ \Rightarrow \frac{1}{\sqrt{3}}=\frac{ AE }{60 \sqrt{3}}$
$ \Rightarrow AE =60\ m$
Now,
$x=A D=A E+E D$
$ =60+15$
$ =75\ m .$
Need a full question paper?
Generate a complete, print-ready paper with questions like this in minutes — across 16+ boards, with answer keys.
Explore more
Similar questions
Prove that the bisectors of the interior angles of a rectangle form a square.
The measures of the angles of a triangle are $(3x - 5)^\circ , (3++ 5)^\circ $ and $6x^\circ $ Find $x$ and state that the type of triangle formed.
→If the following pair of the triangle is congruent? state the condition of congruency : In $\triangle ADC$ and $\triangle PQR, BC = QR, \angle A = 90^o, \angle C = \angle R = 40^o$ and $\angle Q = 50^o.$
→Simplify the following:$12 \log \frac{3}{2}+7 \log \frac{125}{27}-5 \log \frac{25}{36}-7 \log 25+\log \frac{16}{3}$
→The bisector of the equal angles of an isosceles $\triangle PQR$ meet at $O$. If $PQ = PR$, prove that $PO$ bisects $\angle P.$
→ Simplify the following$\frac{3}{5-\sqrt{3}}+\frac{2}{5+\sqrt{3}}$
→In the given figure, ABCD is a rectangle inscribed in a circle. If two adjacent sides of the rectangle be 8 cm and 6 cm, calculate:
(i) the radius of the circle; and
(ii) the area of the shaded region. (Take $\pi$ = 3.14 )
→(i) the radius of the circle; and
(ii) the area of the shaded region. (Take $\pi$ = 3.14 )
Find the selling price of a camera bought for $Rs.4600$ and sold at a profit of $15\%.$
→If $a-\frac{1}{a}=8$ and $a \neq 0$ find:$(i)\ a+\frac{1}{a};(ii)\ a^2-\frac{1}{a^2}$

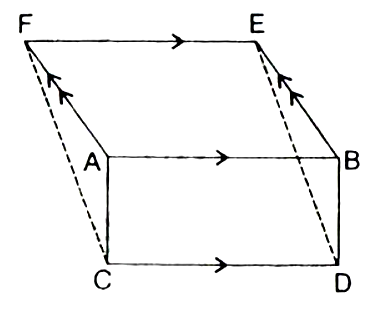

→The given figure shows a rectangle $\text{ABDC}$ and a parallelogram $\text{ABEF};$ drawn on opposite sides of $AB.$Prove that$:(i)$ Quadrilateral $\text{CDEF}$ is a parallelogram Area of the quad. $\text{CDEF}= $Area of rect. $\text{ABDC} +$ Area of $\|gm. ABEF.$
→
