2. Electric potential and capacitance — Physics STD 12 Science — Question

CBSE BoardEnglish MediumSTD 12 SciencePhysics2. Electric potential and capacitance1 Mark
MCQ
For given $\vec E = 2x\hat i + 3y\hat j$, find the potential at $(X, Y)$ if potential at origin is $5\, volts.$
  • ✓
    $ - {X^2} - \frac{3}{2}{Y^2} + 5$
  • B
    $\frac{{ - 2}}{3}{X^2} - \frac{3}{2}{Y^2} + 5$
  • C
    $ - 2{X^2} - \frac{{3{Y^2}}}{2}$
  • D
    $\frac{{3{Y^2}}}{2} + 5$
✓

Answer

Correct option: A.
$ - {X^2} - \frac{3}{2}{Y^2} + 5$
a
$\int_{5}^{\mathrm{V}} \mathrm{dV}=-\int_{(0,0)}^{(\mathrm{X} , \mathrm{Y})} \mathrm{E} \cdot \mathrm{dr}=-\int_{0}^{\mathrm{X}} \mathrm{E}_{\mathrm{X}} \cdot \mathrm{dx}-\int_{0}^{\mathrm{Y}} \mathrm{E}_{\mathrm{Y}} \mathrm{dy}$

$V-5=\frac{-2 X^{2}}{2} \frac{-3 Y^{2}}{2}$

$V=\frac{-2 X^{2}}{2} \frac{-3 Y^{2}}{2}+5$

Need a full question paper?

Generate a complete, print-ready paper with questions like this in minutes — across 16+ boards, with answer keys.

Start Generating Free

Explore more

More "M.C.Q (1 Marks)" from 2. Electric potential and capacitance→2. Electric potential and capacitance — all question types→Physics STD 12 Science question papers→CBSE Board STD 12 Science question papers→CBSE Board question paper generator→

Similar questions

A capacitor having capacitance C is charged to a voltage V. It is then removed and connected in parallel with another identical capacitor which is uncharged. The new charge on each capacitor is now
→
Consider a binary star system consisting of two stars of masses ${M_1}$ and ${M_2}$ separated by a distance of $30 AU$ with a period of revolution equal to $30$ years. If one of the two stars is 5 times farther from the centre of mass than the other. The masses of the two stars in terms of solar masses are
→
The shows two $NAND$ gates followed by a $NOR$ gate. The system is equivalent to the following logic gate
→
A potentiometer has uniform potential gradient. The specific resistance of the material of the potentiometer wire is $10^{-7}$ ohm–meter and the current passing through it is 0.1 ampere; cross-section of the wire is $10^{-6} \mathrm{~m}^2$. The potential gradient along the potentiometer wire is
→

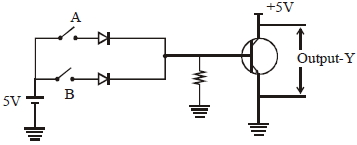

Boolean relation at the output stage$-Y$ for the following circuit is
→
