Question
For the same objective, find the ratio of the least separation between two points to be distinguished by a microscope for light of 5000A and electrons accelerated through 100V used as the illuminating substance.
✓
Answer
Resolving power of a microscope $=\frac{2\sin\beta}{1.22\lambda}$ where $\mu$ is refractive index of the medium, $\lambda$ is the wavelength of light and $\beta$ is the angle subtended by the objective at the object.
Now, $\frac{1}{\text{d}}=\frac{2\sin\beta}{1.22\lambda}$
$\Rightarrow\ \text{d}_\text{min}=\frac{1.22\lambda}{2\sin\beta}$
For the light of wavelength 5000A,
$\text{d}_\text{min}=\frac{1.22\times5000\times10^{-10}}{2\sin\beta}\Big[\because\ 1\text{A}=10^{-10}\text{m}\Big]\ .....(\text{i})$
Now, the de-Broglie wavelenght is given by $\lambda=\frac{12.27}{\sqrt{\text{V}}}$
Substituting V = 100 in $\lambda=\frac{12.27}{\sqrt{\text{V}}}$, we get
$\frac{12.27}{\sqrt{100}}=1.227\times10^{-10}\text{m}$
$\therefore\ \text{d}'_\text{min}=\frac{1.22\times1.227\times10^{-10}}{2\sin\beta}$
Ratio of the least separation
$\frac{\text{d}_\text{min}}{\text{d}'_\text{min}}=\frac{\frac{1.22\times5000\times10^{-10}}{2\sin\beta}}{\frac{1.22\times1.227\times10^{-10}}{2\sin\beta}}$
$=\frac{5000}{1.227}$
$=4075.$
Now, $\frac{1}{\text{d}}=\frac{2\sin\beta}{1.22\lambda}$
$\Rightarrow\ \text{d}_\text{min}=\frac{1.22\lambda}{2\sin\beta}$
For the light of wavelength 5000A,
$\text{d}_\text{min}=\frac{1.22\times5000\times10^{-10}}{2\sin\beta}\Big[\because\ 1\text{A}=10^{-10}\text{m}\Big]\ .....(\text{i})$
Now, the de-Broglie wavelenght is given by $\lambda=\frac{12.27}{\sqrt{\text{V}}}$
Substituting V = 100 in $\lambda=\frac{12.27}{\sqrt{\text{V}}}$, we get
$\frac{12.27}{\sqrt{100}}=1.227\times10^{-10}\text{m}$
$\therefore\ \text{d}'_\text{min}=\frac{1.22\times1.227\times10^{-10}}{2\sin\beta}$
Ratio of the least separation
$\frac{\text{d}_\text{min}}{\text{d}'_\text{min}}=\frac{\frac{1.22\times5000\times10^{-10}}{2\sin\beta}}{\frac{1.22\times1.227\times10^{-10}}{2\sin\beta}}$
$=\frac{5000}{1.227}$
$=4075.$
Need a full question paper?
Generate a complete, print-ready paper with questions like this in minutes — across 16+ boards, with answer keys.
Explore more
Similar questions
Compare and contrast the nature of $\alpha-, \beta-$ and $\gamma-$radiations.
→Derive the lens formula $\frac{1}{\text{f}}=\frac{1}{\text{v}}-\frac{1}{\text{u}}$ for a thin concave lens, using the necessary ray diagram.
→A capacitor is formed by two square metal$-$plates of edge a, separated by a distance $d.$ Dielectrics of dielectric constants $K_1$ and $K_2$ are filled in the gap as shown in figure. Find the capacitance.
→An electron is projected horizontally with a kinetic energy of $10\ keV$. A magnetic field of strength $1.0 \times 10^{-7}T$ exists in the vertically upward direction.
→- Will the electron deflect towards the right or left of its motion?
- Calculate the sideways deflection of the electron while travelling through $1m$. Make appropriate approximations.
Find the total heat produced in the loop of the previous problem during the interval $0$ to $30s$ if the resistance of the loop is $4.5\text{m}\Omega.$

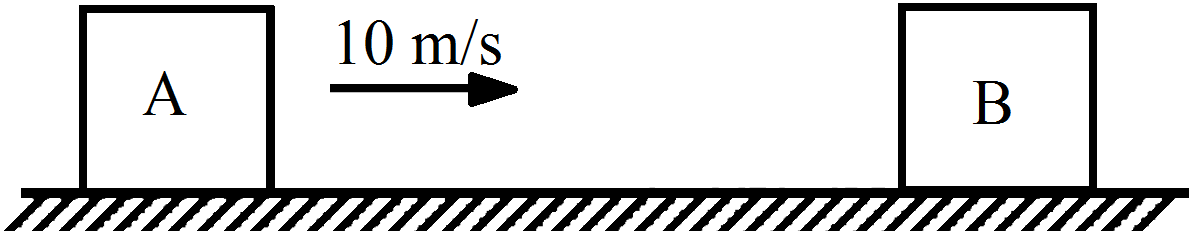

→The blocks shown in figure have equal masses. blocks in the process. The surface of $A$ is smooth but that of $B$ has a friction coefficient of $0.10$ with the floor. Block $A$ is moving at a speed of $10m/s$ towards $B$ which is kept at rest. Find the distance travelled by $B$ if
→- The collision is perfectly elastic
- The collision is perfectly inelastic. $($Take $g = 10m/s^2)$
A capacitor is formed by two square metal $-$ plates of edge a, separated by a distance $d$. Dielectrics of dielectric constants $K_1$ and $K_2$ are filled in the gap as shown in figure. Find the capacitance.
→What is Lenz's law of electromagnetic induction? Explain how does it correlate with law of conservation of energy?

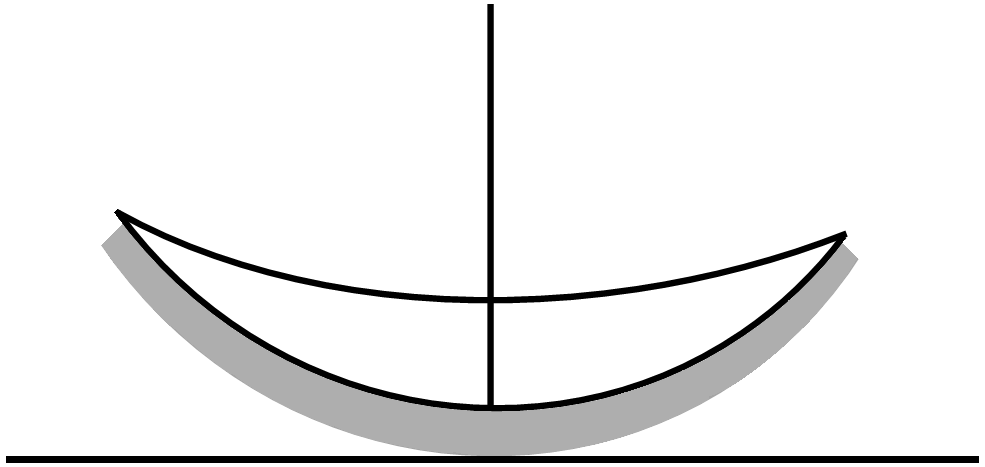

The convex surface of a thin concavo-convex lens of glass of refractive index $1.5$ has a radius of curvature $20\ cm$. The concave surface has a radius of curvature $60\ cm$. The convex side is silvered and placed on a horizontal surface as shown in figure.
