Question
Form the pair of linear equations in the following problems, and find their solution graphically:
10 students of class X took part in Mathematics quiz. If the number of girls is 4 more than the number of boys, find the number of boys and girls who took part in the quiz.

Answer

Let the number of girls and boys in the class be x and y respectively.
According to the given conditions, we have,
x + y = 10
x - y = 4
x + y = 10
⇒ x = 10 - y
Three solutions of this equations can be written in a table as follows,
x
4
5
6
y
6
5
4
x - y = 4
⇒ x = 4 + y
Three solutions of this equation can be written in a table as follows.
x
5
4
3
y
1
0
-1
The graphical representation is as follows.

From the graph, it can be observes that the two lines intersect each other at the point (7, 3). So. x = 7 and y = 3. Thus the number of girls and boys in the class are 7 and 3 respectively.

Need a full question paper?

Generate a complete, print-ready paper with questions like this in minutes — across 16+ boards, with answer keys.

Start Generating Free

Similar questions

The angles of depression of the top and bottom of an 8 m tall building from top of a multistoreyed building are $30^o$ and $45^o,$ respectively. Find the height of multi-storeyed building and distance between two buildings.
If 45 is subtracted from twice the greater of two numbers, it result in the other number. If 21 is subtracted from twice the smaller number, it results in the greater number. Find the numbers.
Show that one and only one out of n, n + 4, n + 8, n + 12 and n + 16 is divisibleby 5, where n is any positive integer.
[Hint: Any positive integer can be written in the form 5q, 5q+1, 5q+2, 5q+3, 5q+4].
The point A divides the join of P(-5, 1) and Q(3, 5) in the ratio k : 1. Find the two values of k for which the area of ΔABC where B is (1, 5) and C(7, -2) is equal to 2 units.

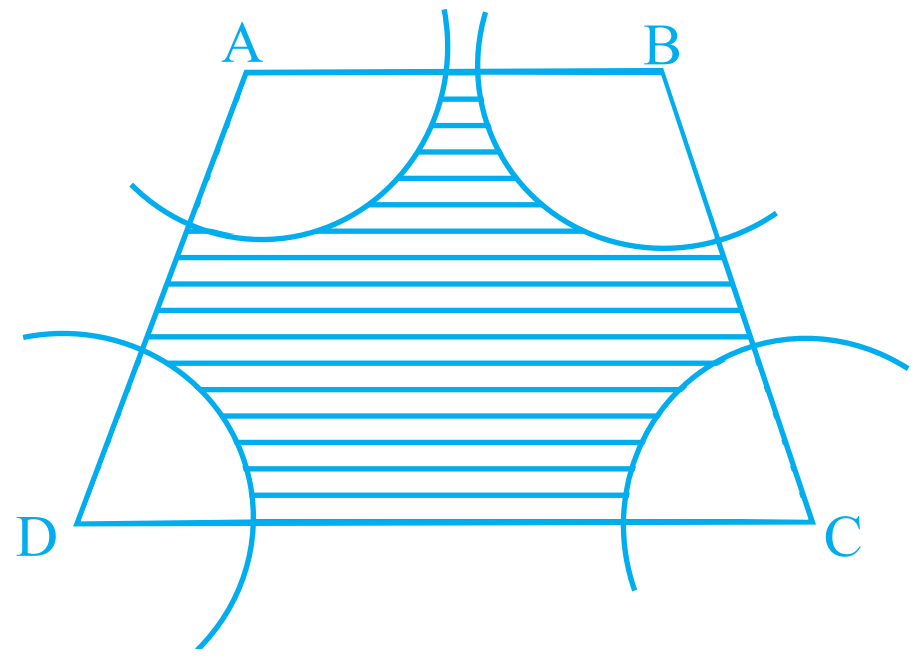

In Fig. $\text{ABCD}$ is a trapezium with $\text{AB || DC, AB} = 18\ cm, DC = 32\ cm$ and distance between $AB$ and $DC = 14\ cm$. If arcs of equal radii $7\ cm$ with centres $\text{A, B, C}$ and $D$ have been drawn, then find the area of the shaded region of the figure.
