MCQ
Given below are two statements: one is labelled as Assertion $A$ and the other is labelled as Reason $R$.

Assertion $A$: The potential ( $V$ ) at any axial point, at $2 \mathrm{~m}$ distance ( $r$ ) from the centre of the dipole of dipole moment vector $\vec{P}$ of magnitude, $4 \times 10^{-6} \mathrm{C} \mathrm{m}$, is $\pm 9 \times 10^3 \mathrm{~V}$.

(Take $\frac{1}{4 \pi \in_0}=9 \times 10^9 \mathrm{Sl}$ units)

Reason $R$: $V= \pm \frac{2 P}{4 \pi \in_0 r^2}$, where $r$ is the distance of any axial point, situated at $2 \mathrm{~m}$ from the centre of the dipole.

In the light of the above statements, choose the correct answer from the options given below:

  • A
    Both $A$ and $R$ are true and $R$ is $NOT$ the correct explanation of $A$.
  • $A$ is true but $R$ is false.
  • C
    $A$ is false but $R$ is true.
  • D
    Both $A$ and $R$ are true and $R$ is the correct explanation of $A$.

Answer

Correct option: B.
$A$ is true but $R$ is false.
b
The potential $V$ at any point, at distance $r$ from centre of dipole $=\frac{K P \cos \theta}{r^2}$

At axial point where $\theta=0^{\circ}, V=\frac{K P}{r^2}=\frac{9 \times 10^9 \times 4 \times 10^{-6}}{2^2}=9 \times 10^3 \mathrm{~V}$

At axial point where $\theta=180^{\circ}, V=\frac{-K P}{r^2}=-9 \times 10^3 \mathrm{~V}$

Need a full question paper?

Generate a complete, print-ready paper with questions like this in minutes — across 16+ boards, with answer keys.

Start Generating Free

Similar questions

For diffraction of light, it is necessary that the size of the obstacle in comparison to the wavelength of light waves will be :
Magnets $A$ and $B$ are geometrically similar but the magnetic moment of $A$ is twice that of $B$. If $T_1 $ and $T_2$ be the time periods of the oscillation when their like poles and unlike poles are kept together respectively, then $\frac{{{T_1}}}{{{T_2}}}$will be
For what value of unknown resistance X, the potential difference between B and D will be zero in the circuit shown in the figure
A rectangular coil of length $0 .12\, m$ and width $0.1\, m$ having $50$ turns of wire is suspended vertically in a uniform magnetic field of strength $0.2\,\, Weber/m^2.$ The coil carries a current of $2 \,\,A.$ If the plane of the coil is inclined at an angle of $30^o $ with the direction of the field, the torque required to keep the coil in stable equilibrium will be .......$Nm$
The focal length of the obejctive lens and the eye piece of a microscope are $2\, cm$ and $5\, cm$ respectively and the distance between them is $20\, cm$. Find the distance of  the object from objective lens when final image is seen by the eye is $25 \,cm$ from the  eye piece......$cm$
The amount of charge flowing through the wire in $1s$ if the current flowing $1$ A then the charge flowing will be:

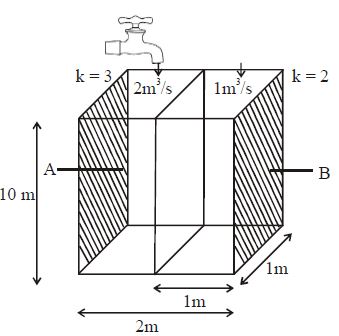

A thin metallic partition of negligible thickness is inserted between two shaded metallic plates as shown. The remaining ends are then packed with insulating plates to form a container like structure.$2$ taps shown are opened at $t = 0$ and finally closed at $t = 5s$. Find capacitance of system between $A$ and $B$ after closing taps. (Assume liquid to be non conducting) Volumetric flow rates and dieletric constants of liquid are given.
