Question
How does Ampere-Maxwell law explain the flow of current through a capacitor when it is being charged by a battery? Write the expression for the displacement current in terms of the rate of change of electric flux.
✓
Answer
During charging, electric flux between the plates of capacitor keeps on changing; this results in the production of a displacement current between the plates.
$Id=\in_0\frac{d\phi_E}{dt}\big(Id=\in_0A\frac{dE}{dt}\big)$
$Id=\in_0\frac{d\phi_E}{dt}\big(Id=\in_0A\frac{dE}{dt}\big)$
Need a full question paper?
Generate a complete, print-ready paper with questions like this in minutes — across 16+ boards, with answer keys.
Explore more
Similar questions
A beam of light consisting of two wavelengths, $4000 \mathring A$ and $6000 \mathring A ,$ is used to obtain interference fringes in a Young’s double$-$slit experiment. What is the least distance from the central maximum where the dark fringe is obtained?
→A bulb is made using two filaments. A switch selects whether the filaments are used individually or in parallel. When used with a 15V battery, the bulb can be operated at 5W, 10W or 15W. What should be the resistances of the filaments?
The current generator $I_g$ shown in figure, sends a constant current i through the circuit. The wire ab has a length l and mass m and can slide on the smooth, horizontal rails connected to $I_g.$ The entire system lies in a vertical magnetic field B. Find the velocity of the wire as a function of time.
→$a.$ Show that the time period $(T)$ of oscillations of a freely suspended magnetic dipole of magnetic moment $(m)$ in a uniform magnetic field $(B)$ is given by $T=2 \pi \sqrt{\frac{I}{m B}}$, where $I$ is a moment of inertia of the magnetic dipole.
$b.$ Identify the following magnetic materials:
$i.$ A material having susceptibility $\left(\chi_m\right)=-0.00015$.
$ii.$ A material having susceptibility $\left(\chi_m\right)=10^{-5}$.
→$b.$ Identify the following magnetic materials:
$i.$ A material having susceptibility $\left(\chi_m\right)=-0.00015$.
$ii.$ A material having susceptibility $\left(\chi_m\right)=10^{-5}$.
Explain Inductance. Give its unit and dimensions.
A parallel plate capacitor is charged with a potential difference 50 V . Thereafter it is discharged by a resistor for 2 sec , due to which its potential decreases by 10 V . Calculate the portion of energy stored in the capacitor.
A straight solenoid of length $50 \ cm$ has $1000$ turns and a mean cross$-$sectional area of $2 \times 10^{-4} m^2$. It is placed with its axis at $30^{\circ}$, with a uniform magnetic field of $0.32 T .$ Find the torque acting on the solenoid when a current of $2 A$ is passed through it.
→Two capacitors of capacitance 6 μF an 12 μF are connected in series with a battery. The voltage across the 6 capacitor is 2 V. Compute the total battery voltage.

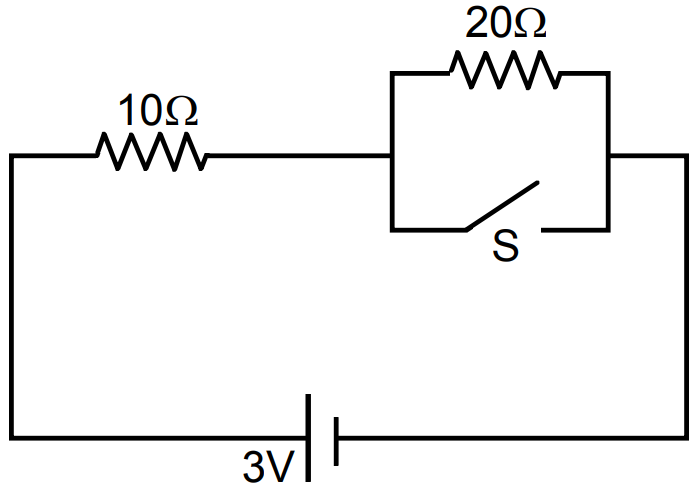

Consider the circuit shown in figure. Find the current through the $10\Omega$ resistor when the switch S is (a) Open (b) Closed.
→In deriving the single slit diffraction pattern, it was stated that the intensity is zero at angles of $\text{n}\lambda/\text{a}.$ Justify this by suitably dividing the slit to bring out the cancellation.
→
