Question
✓
Answer
- (ii)
Explanation: Essential conditions are necessary when electrical components are connected:
- Voltmeter should be connected in parallel.
- Ammeter is always connected in series.
- Positive terminals of voltmeter and ammeter should be connected to positive terminal of the cell and their negative terminals should be joined to the negative terminal of the cell.
Thus, the above conditions are satisfied in case (ii).
Need a full question paper?
Generate a complete, print-ready paper with questions like this in minutes — across 16+ boards, with answer keys.
Explore more
Similar questions
Which scientist suggested that the magnet must also exert an equal and opposite force on the current?
Motion of charges is nothing but:
When the diameter of a wire is doubled, its resistance becomes:
- Double.
- Four times.
- One-half.
- One-fourth.
The refractive indexes of four substances P, Q, R and S are 1.77, 1.50, 2.42 and 1.31 respectively. When light travelling in air is incident on these substances at equal angles, the angle of refraction will be the maximum in:
Choose the incorrect statement:
SI unit of electrical energy is:
A soft iron bar is inserted inside a current-carrying solenoid. The magnetic field inside the solenoid:
- Will decrease.
- Will increase.
- Will become zero.
- Will remain the same.
The magnification produced by a spherical mirror and a spherical lens is +0.8.

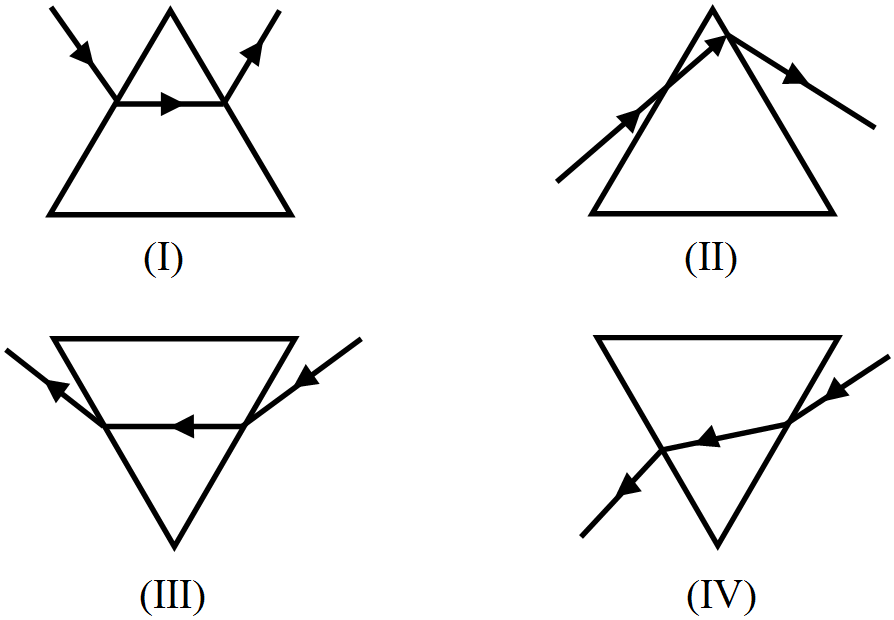

While performing the experiment to trace the path of a ray of light passing through a glass prism, four students marked the incident ray and the emergent ray in their diagrams in the manner shown below:
The elements of electrical heating devices are usually made of:
- Tungsten.
- Bronze.
- Nichrome.
- Argon.
