MCQ

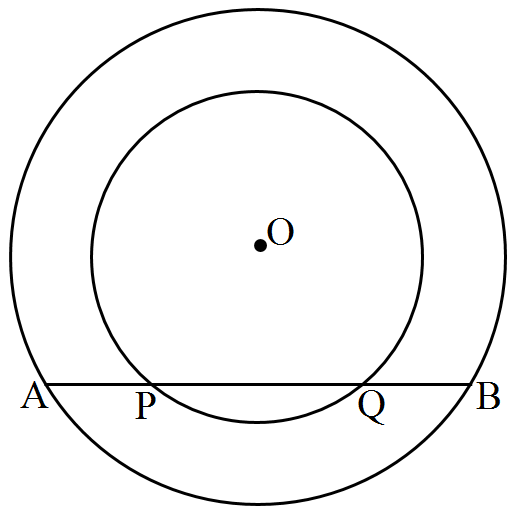

If a straight line $APQB$ is drawn to cut two concentric circles, then:
- A$AP >> BQ$
- B$AP << BQ$
- ✓$AP = BQ$
- D$AQ >> PB$
✓
Answer
Correct option: C.
$AP = BQ$
Let $OD$ is perpendicular to $AB.$ Then $AD = DB.$
Also $DP = DQ$
Therefore, $AP = AD - PD$
$= BD - DQ$
$= BQ$
Hence, $AP = BQ$
