Question
If the horizontal force needed for the turn in the previous problem is to be supplied by the normal force by the road, what should be the proper angle of banking?
✓
Answer
in the diagram
$\text{R}\cos\theta=\text{mg}\ \dots(1)$
$\text{R}\sin\theta=\frac{\text{mv}^2}{\text{r}}\ \dots(2)$
Dividing equation (1) with equation (2),$\tan\theta=\frac{\text{mv}^2}{\text{rmg}}=\frac{\text{v}^2}{\text{rg}}$
$\text{v}=36\text{km}/\text{hr}=10\text{m}/\text{sec},\text{r}=30\text{m}$
$\tan\theta=\frac{\text{v}^2}{\text{rg}}$
$=\frac{100}{30\times10}=\frac{1}{3}$
$\Rightarrow\theta=\tan^{-1}\Big(\frac{1}{3}\Big)$
$\text{R}\cos\theta=\text{mg}\ \dots(1)$
$\text{R}\sin\theta=\frac{\text{mv}^2}{\text{r}}\ \dots(2)$
Dividing equation (1) with equation (2),$\tan\theta=\frac{\text{mv}^2}{\text{rmg}}=\frac{\text{v}^2}{\text{rg}}$
$\text{v}=36\text{km}/\text{hr}=10\text{m}/\text{sec},\text{r}=30\text{m}$
$\tan\theta=\frac{\text{v}^2}{\text{rg}}$
$=\frac{100}{30\times10}=\frac{1}{3}$
$\Rightarrow\theta=\tan^{-1}\Big(\frac{1}{3}\Big)$
Need a full question paper?
Generate a complete, print-ready paper with questions like this in minutes — across 16+ boards, with answer keys.
Explore more
Similar questions

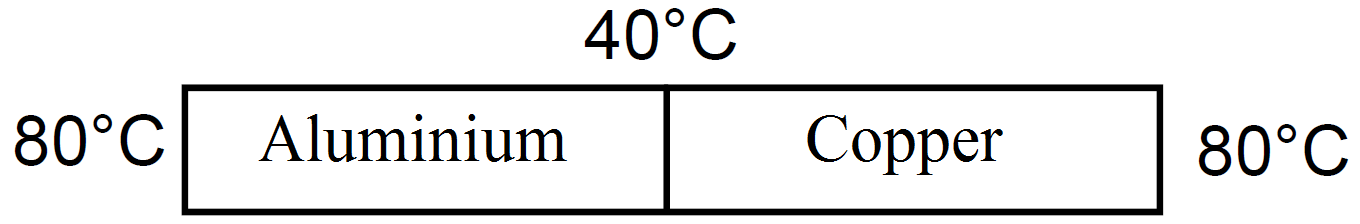

Figure, shows an aluminium rod joined to a copper rod. Each of the rods has a length of 20 cm and area of cross section $0.20 \mathrm{~cm}^2$. The junction is maintained at a constant temperature $40^{\circ} \mathrm{C}$ and the two ends are maintained at $80^{\circ} \mathrm{C}$. Calculate the amount of heat taken out from the cold junction in one minute after the steady state is reached. The conductivities are $\mathrm{KAI}=200 \mathrm{wm}^{-1{ }^{\circ}} \mathrm{C}^{-1}$ and $\mathrm{K}_{\mathrm{Cu}}=400 \mathrm{wm}^{-1^{\circ}} \mathrm{C}^{-1}$.
