In figure, if lines l and m are parallel lines, then x = - Vidyadip

MCQ

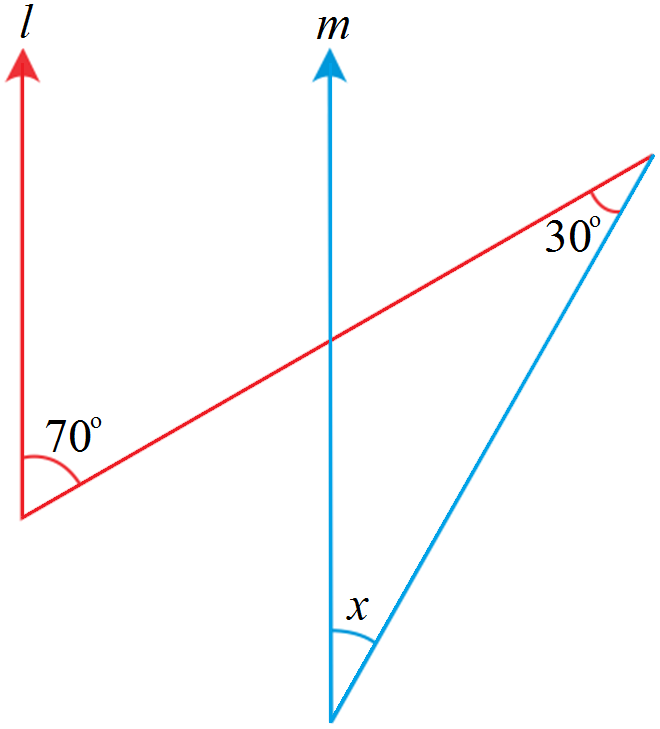

In figure, if lines l and m are parallel lines, then x =

A
70°
B
100°
C
40°
D
30°

✓

Answer

40°
Solution:

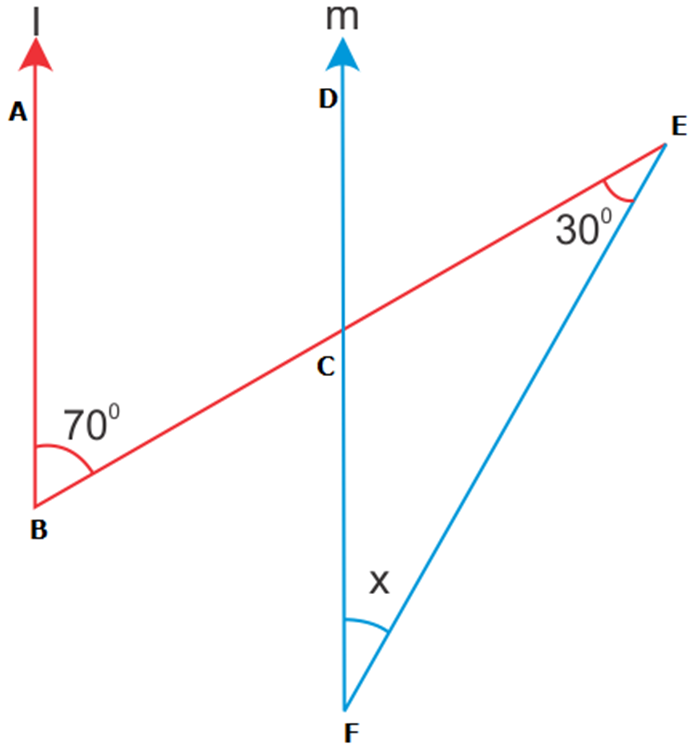

From figure,
$\angle\text{ABC}=\angle\text{DCE}\dots(1)$ [Corresponding angles]
$\angle\text{ECF}=180^\circ-\angle\text{DCE}$ [Supplementary]
$=180^\circ-\angle\text{ABC}$ [From (1)]
$=180^\circ-70^\circ$
$\Rightarrow\ \angle\text{ECF}=110^\circ$
Now, in $\triangle\text{CEF}$
$\angle\text{ECF}+\angle\text{CFE}+\angle\text{FEC}=180^\circ$
$\Rightarrow\ 110^\circ+\text{x}+30^\circ=180^\circ$
$\Rightarrow\ \text{x}=40^\circ$
