In the circuit given below, $V ( t )$ is the sinusoidal voltage source, voltage drop $V_{A B}(t)$ across the resistance $R$ is
  • A
    is half wave rectified
  • B
    is full wave rectified
  • C
    has the same peak value in the positive and negative half cycles
  • ✓
    has different peak values during positive and negative half cycle
✓

Answer

Correct option: D.
has different peak values during positive and negative half cycle
d
(d)

During the operation, either of $D_1$ and $D_2$ be in forward bias. Also $R_1$ and $R_2$ are different, so output across $R$ will have different peaks.

Need a full question paper?

Generate a complete, print-ready paper with questions like this in minutes — across 16+ boards, with answer keys.

Start Generating Free

Explore more

More "M.C.Q (1 Marks)" from 14. Semicondutor electronics→14. Semicondutor electronics — all question types→Physics STD 12 Science question papers→CBSE Board STD 12 Science question papers→CBSE Board question paper generator→

Similar questions

A carbon resistor has colour strips as violet, yellow brown and golden. The resistance is .............. $\Omega$
→
Light takes $8$ min $ 20\, sec$ to reach from sun on the earth. If the whole atmosphere is filled with water, the light will take the time ($_a{\mu _w} = 4/3$)
→
A charge q is placed at the centre of the open end of a cylindrical vessel $($figure$)$. The flux of the electric field through the surface of the vessel is:
→
Which one of the following statements is true
→
In which of the following nuclear reactions, the product is incorrectly matched ?
→
A conducting circular loop of radius r carries a constant current i. It is placed in a uniform magnetic field $\vec B$, such that $\vec B$ is perpendicular to the plane of the loop. The magnetic force acting on the loop is
→

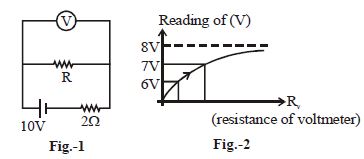

In the given figure $-1$, resistance of shown voltmeter is variable. Variation of whose reading with respect to its resistance is shown in figure $-2$. The value of $R$ is ............... $\Omega$
→
