In the circuit shown here, E_1 = E_2 = E_3 = 2 V and R_1 = R_2 = 4,ohms. The current flowing between points A

Q: In the circuit shown here, $E_1 = E_2 = E_3 = 2 V$ and $R_1 = R_2 = 4\,ohms$. The current flowing between points $A$ and $B$ through battery $E_2$ is

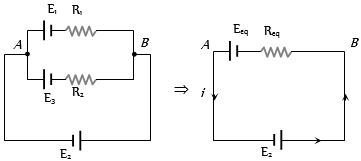

b The given circuit can be redrawn ${E_{eq}} = \frac{{{E_1}{R_2} + {E_2}{R_1}}}{{{R_1} + {R_2}}} = \frac{{2 \times 4 + 2 \times 4}}{{4 + 4}} = 2\,V$ and ${R_{eq}} = \frac{4}{2} = 2\Omega $. Current $i = \frac{{2 + 2}}{2} = 2A$ from $A$ to $B$ through $E_2.$

SECTION - A [PHYSICS MCQ]

GSEB - English Medium

In the circuit shown here, $E_1 = E_2 = E_3 = 2 V$ and $R_1 = R_2 = 4\,ohms$. The current flowing between points $A$ and $B$ through battery $E_2$ is

A
Zero
B$2\, amp$ from $A$ to $B$
C$2\, amp$ from $B$ to $A$
D
None of the above

Medium

STD 11 Science
JEE
STD 12 - 3. current electricity
Physics
