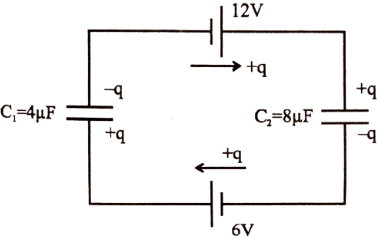

In the circuit shown initially $C_1, C_2$ are uncharged. After closing the switch
  • AThe charge on $C_2$ is greater that on $C_1$
  • BThe charge on $C_1 $ and $C_2$  are the same
  • CThe potential drops across $C_1$ and $C_2$ are the same
  • DThe potential drops across $C_2 $ is greater than that across $C_1$
Diffcult
