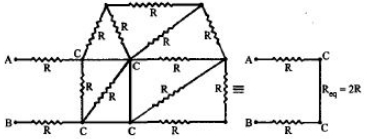

In the given circuit all resistances are of value $R\,ohm$ each. The equivalent resistance between $A$ and $B$ is
